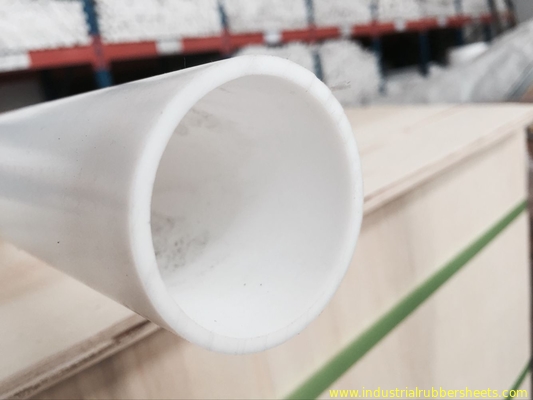

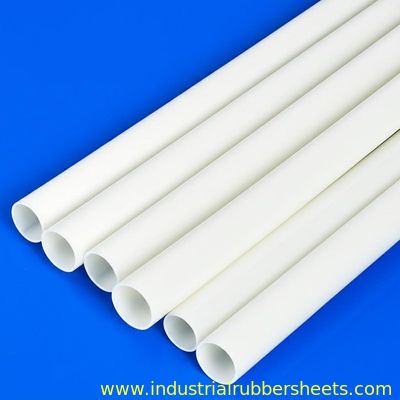

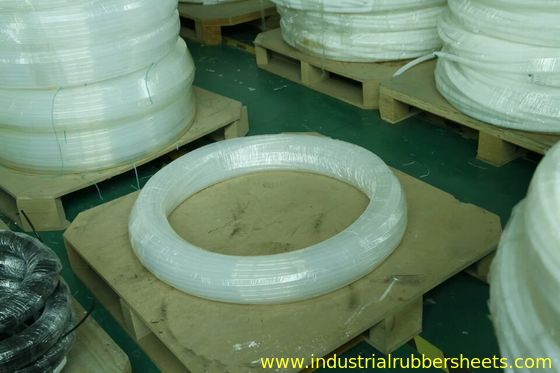

Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface

China Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier
Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface supplier

Large Image :  Industrial Grade White Moulded PTFE Tube / 100% Virgin PTFE Pipe Smooth Surface

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3003

Payment & Shipping Terms:

Minimum Order Quantity: 10pieces
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Contact Now
Detailed Product Description
Material: 100% Virgin PTFE Material Produced: Moulded
Quality: Industrial Grade, Food Grade Color: Natural White Color, Black, Brown
Surface: Smooth Tensile Strength: 20Mpa
Elongation: 200% Density: 2.1-2.3g/cm3
Hardness: 55shore D

moulded PTFE tube , PTFE tubing , PTFE pipe made with 100% virgin PTFE material





Product Description

There are three types of PTFE tube

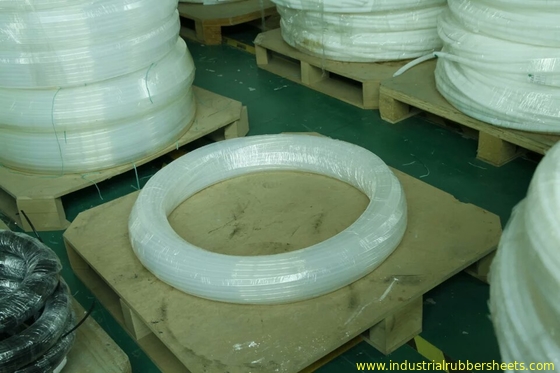

1. Paste Extruded Tube

    The tube is made by paste extruded with disperse rsin.

    0.5mm≤OD ≤ 25mm

    Length is according to customer's request.



2. Plug Extruded Tube

    The tube is made by plug extruded with suspension rsin.

    25mm≤OD ≤ 250mm

    Length is according to customer's request.

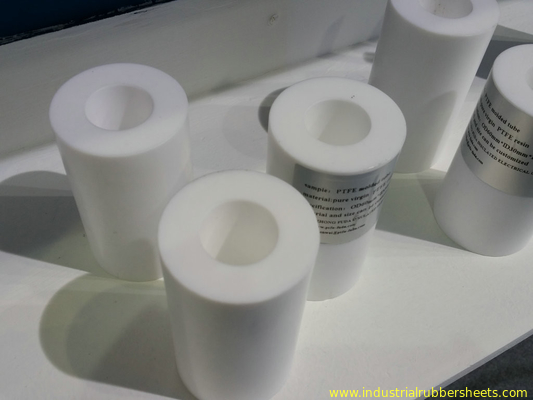

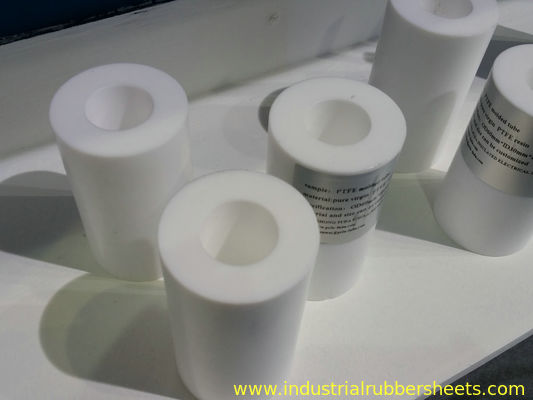

3. Molded Tube

    The tube is made by molded method.

    25mm≤OD ≤ 200mm

    50mm≤Length ≤ 300mm



Specification

  OD(mm) Wall Thickness(mm) Length(mm)
Paste Extruded Tube 0.5~25 0.1~2.5 According to customer's request
Plug Extruded Tube 25~250 1.5~8 According to customer's request
Molded Tube 25~2000 5~500 100~300





There are many specifications are in stock.The data is too much, it's not convenient to list here.

And special specifications can be customized.

If you have any interest, please contact us. We will response to you as soon as possible.





Properties

ITEM Properties Unit
Apparent density 2.10-2.30 g/ cm3
Tensile Strength 20 Mpa
Elongation at break ≥200 %





The PTFE tube, PTFE tube are made by moulded or extruded with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. Ø2-9mm is made by paste extruded, Ø10-50mm is made by ram extruded, Ø50-300mm is made by moulded. It has the best electrical properties of all plastics. The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication material.



Specifications:
material: virgin PTFE
filling: graphite, carbon, bronze or fiberglass
quality: premium grade
color: white, black, brown
surface: smooth
tensile strength: 20-30Mpa
hardness: 55+/-5shore D
elongation at break: 200%
density: 2.1-2.7g/cm3
break down voltage: 10KV/mm
temp resist: -180°C - +260°C

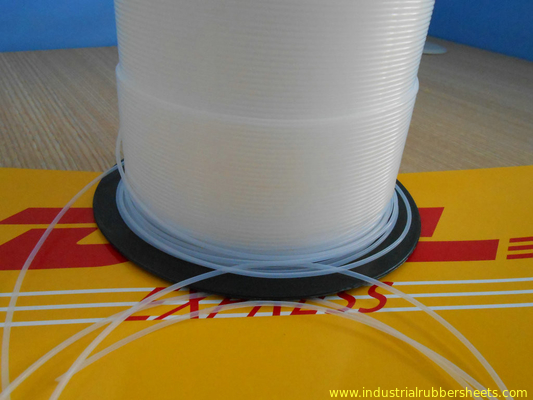

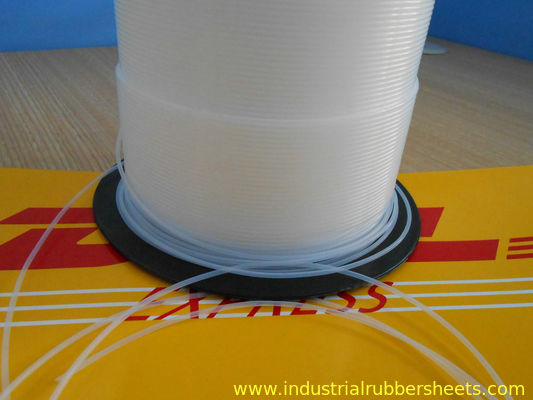

size for soft PTFE tube: Ø2-25mm x Ø4-30mm x 10-50m length
size for extrude PTFE tube: Ø20-400mm x Ø24-440mm x 4000mm length
size for moulded PTFE tube: Ø20-200mm x Ø40-400mm x 10-300mm length

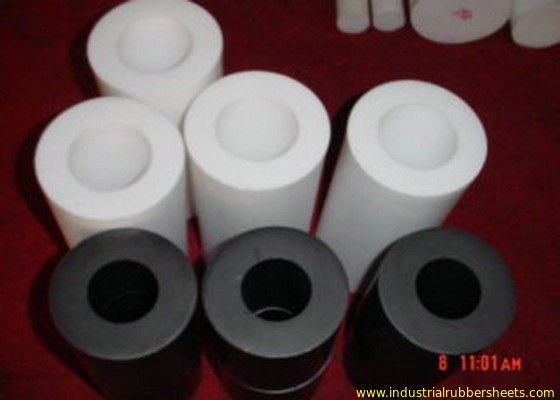

black available to fill 3% graphite or 10% carbon
***when you enquiry, pls confirm the color, size and quantity***
