PTFE polyester mesh fabric , PTFE polyester mesh fabric for conveyor belt / griddling cloth, made by PTFE coated

10rolls
MOQ
negotiation
Price
PTFE polyester mesh fabric , PTFE polyester mesh fabric for conveyor belt / griddling cloth, made by PTFE coated
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PTFE+glassfiber Or Kevlar
Color: Brown, Black, Blue
Joint: Bullnose Joint,spiral And Clapper
Temperature: -60 ~ +360°C
Mesh: 0.5x1, 1x1, 2x2.5, 4x4, 6x6, 10x10mm
Width: Maximum 3.8m
High Light:

ptfe conveyor belt

,

teflon mesh screen

Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3008
Payment & Shipping Terms
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Product Description

PTFE Open Mesh  Belts

Conveyor Belt / Griddling Cloth, Made By PTFE PTFE Coated Fiberglass Reinforced Fabric Mesh



           We selected quality glass,kevlar and nomex yarns to weave open mesh in a variety of mesh sizes,and then coated best dupont PTFE emulsion,which promise our belts' quality.



Properties:

    l Smooth surface, easy clean

    l Non stick, reusable

    l Chemical resistance

    l Insulating properties

    l Heat-resistance





Applications:

1. Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.

2. Shrinking machine for garment fabric, high-frequency and UV dryer.

3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.

4. Oiling machine for paper glazing and waxing, plant engineering.







Mesh fabric technical Datasheet:



Prodct Mesh Size(mm) Material Color temperature(°C) max width(M) tensile strength(N/5CM)
1 1*1 fiberglass Brown/Balck -60/+360 4.07 1600/1500
2 4*4 fiberglass Balck -60/+360 4.07 2200/1500
3 4*4 fiberglass Brwon -60/+360 4.07 2100/1500
4 4*4 fiberglass+kevlar golden -60/+360 4.07 3300/2800
5 4*4 fiberglass Brwon -60/+360 4.07 2800/1580
6 4*4 kevlar golden -60/+360 4.07 3500/3300
7 4*4 fiberglass Black -60/+360 4.07 2800/1500
8 10*10 fiberglass Brwon -60/+360 4.07 1100/1000
9 0.5*1 fiberglass Brwon -60/+360 4.07 2200/1500
10 2*2.5 fiberglass Brwon -60/+360 4.07 2200/1500

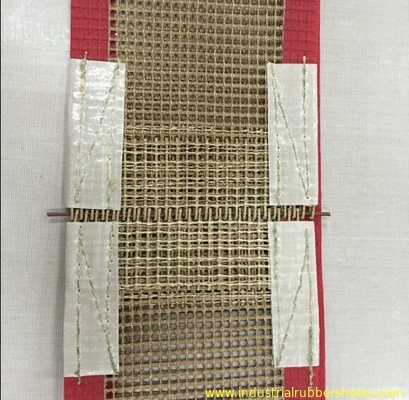

PTFE polyester mesh fabric , PTFE polyester mesh fabric for conveyor belt / griddling cloth, made by PTFE coated 0

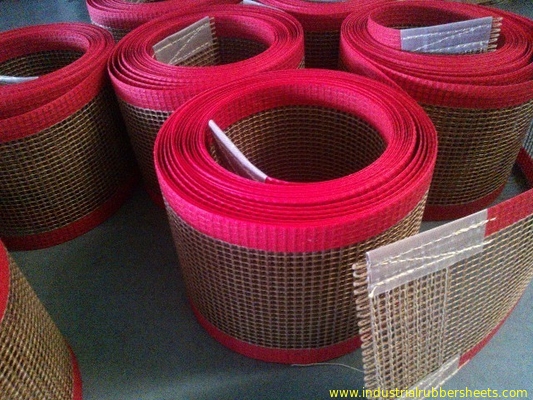

PTFE polyester mesh fabric , PTFE polyester mesh fabric for conveyor belt / griddling cloth, made by PTFE coated 1

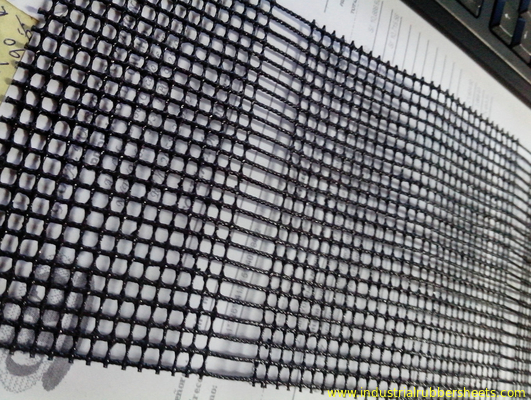

PTFE polyester mesh fabric , PTFE polyester mesh fabric for conveyor belt / griddling cloth, made by PTFE coated 2
