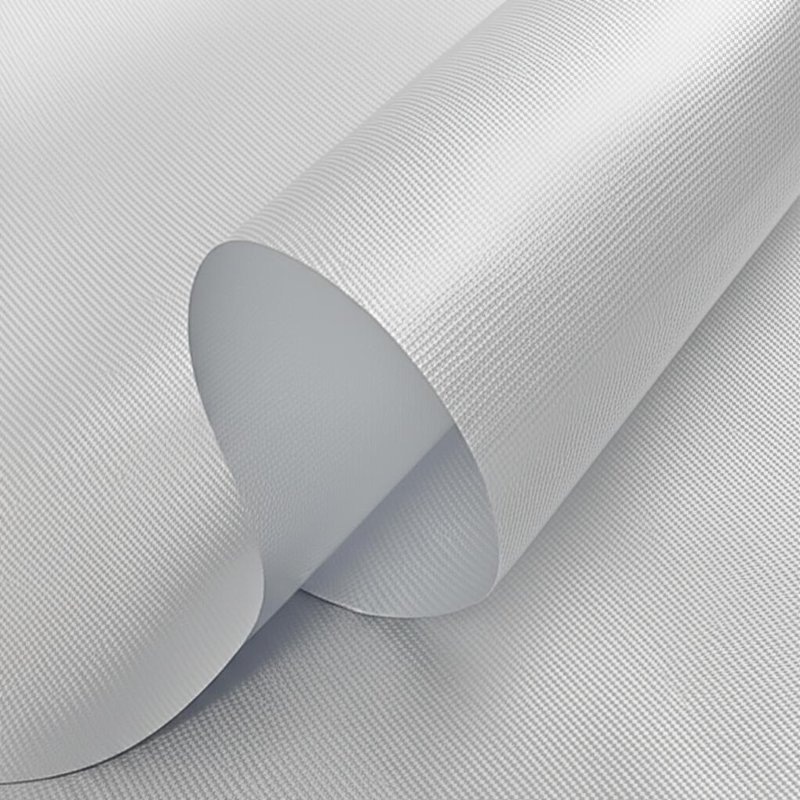

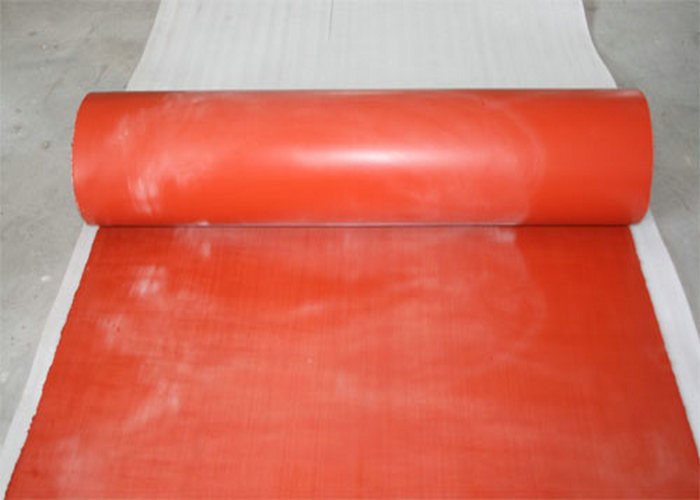

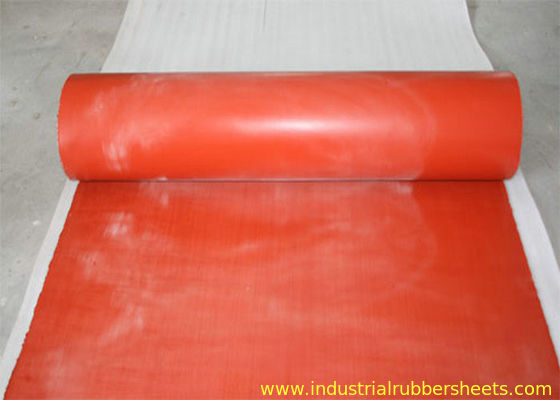

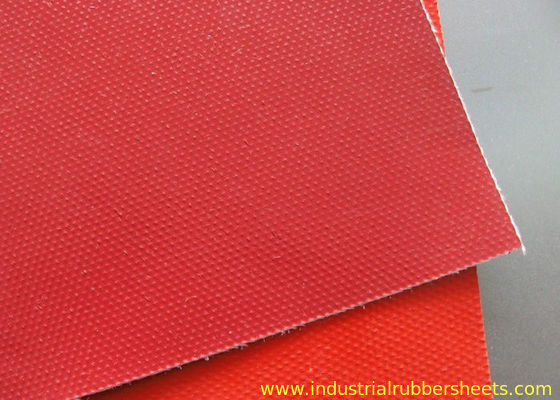

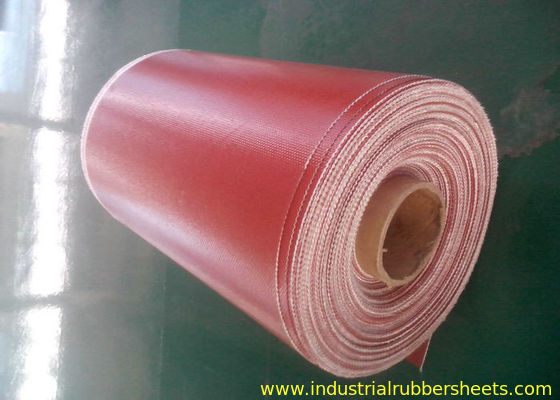

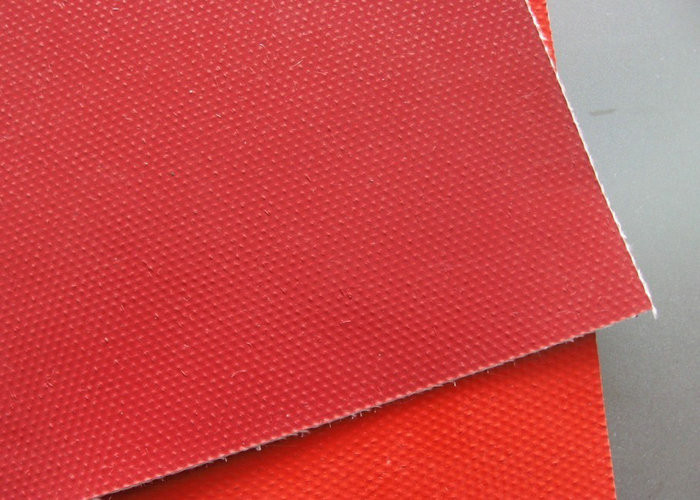

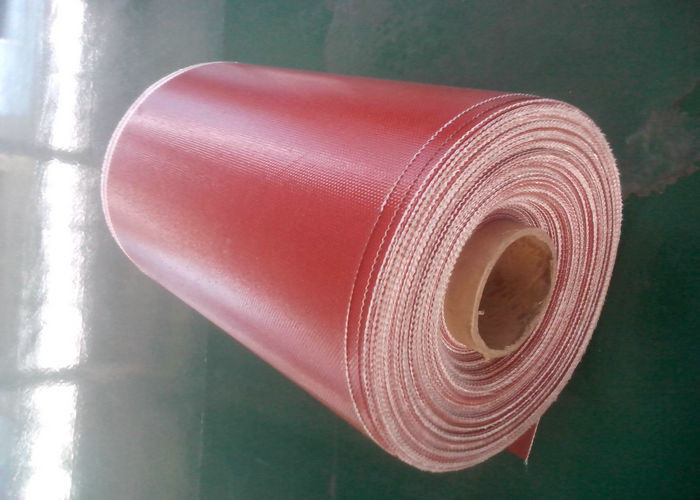

high temperature single side silicone coated fiberglass fabric and cloth
Properties
1. Superb electric insulation
2. Good heat and cold resistance
3. Nice sealing property;
4. Inert to majority of chemical reagents
5. Water repellent and oil repellent
6. Soft and pliable, easy to tailor and good processing performance
7. Working temperature can be increased up to 1000 with the substrate of high silica fiberglass fabric
Product Description
Silicone coated fabric is the multifunctional thermal insulation material with high performance. For its
properties of chemical stability, high temperature resistance and ablation resistance, it’s widely used in
fireproof industry (making fireproof protective cloth, fireproof curtain, welding blanket), thermal insulation
and anticorrosion for pipe.
TYCM is one of the specialized manufactures of silica fiberglass in China and has our special technology
process. The products are sold widely to many Large state-owned industrial enterprises in China and
exported to foreign countries as well. TYCM provides one-sided/double-sided silicone coated fiberglass

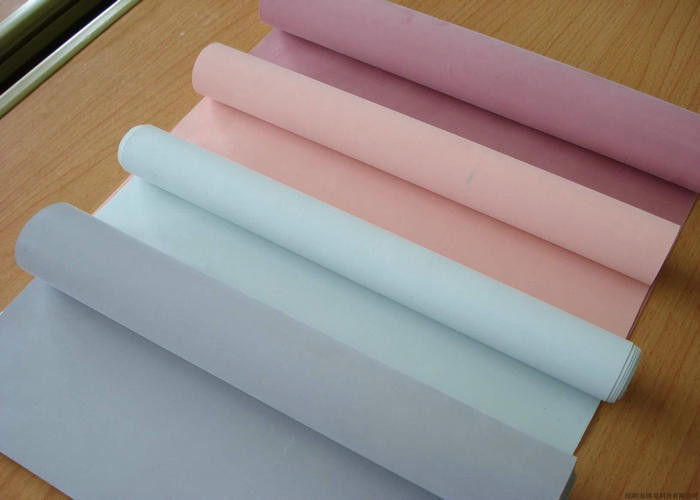

fabric with many varieties of coating weight and colors for difference applications.
DATA
| ITEM | STANDARD | TEST DATA |
| PRODUCT CODE | DRS-46 | DRS-46 |
| BASE FABRIC | HS-1100 | HS-1100 |
| WIDTH, CM | 92±1 | 92.00 |
| WEAVE STYLE | Satin 12HS | Satin 12HS |
| WARP COUNTS, ends/cm | ≥18 | 21.11 |
| FILL COUNTS, ends/cm | ≥13 | 15.05 |
| MD BRK STRN, N/inch | ≥ 1000 | 1021 |
| CD BRK STRN,N/inch | ≥ 750 | 793 |
| WEIGHT, G/M² | 1400±20 | 1389 |
| STD ROLL, Y/roll | 50.0 | 50.0 |
| THICKNESS, mm | 1.3 ± 0.05 | 1.4 |
| SILICA CONTENT % | ≥ 96 | 97.04 |
| LINEAR SHRINKAGE % | 5 --10 | 6.1 |
| L.0.I % | 7--12 | 8.4 |
| WORKING TEMPERATURE | 1000 ℃ | 1000 ℃ |
| SILICON WEIGHT, warp side | 300G/M² | 300G/M² |
| COLOR | DER,GREY... | DER,GREY... |
