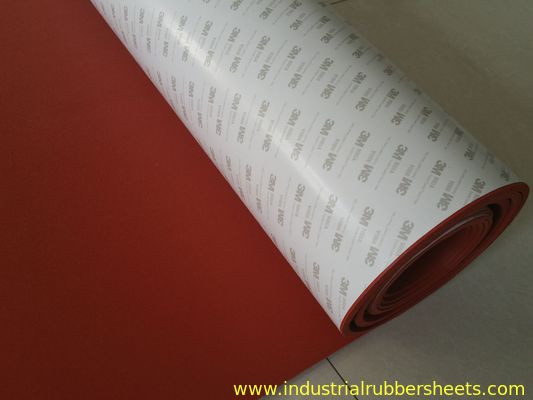

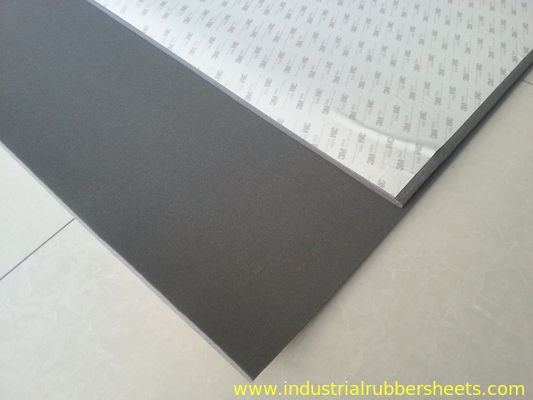

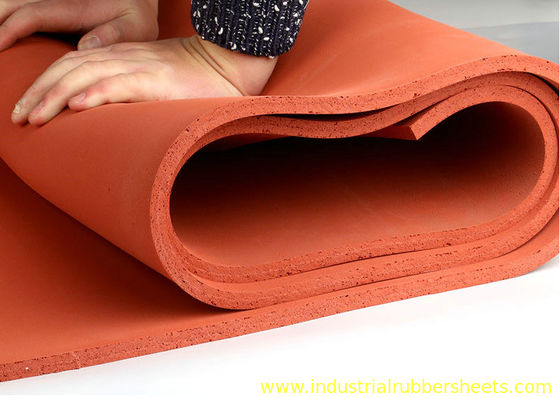

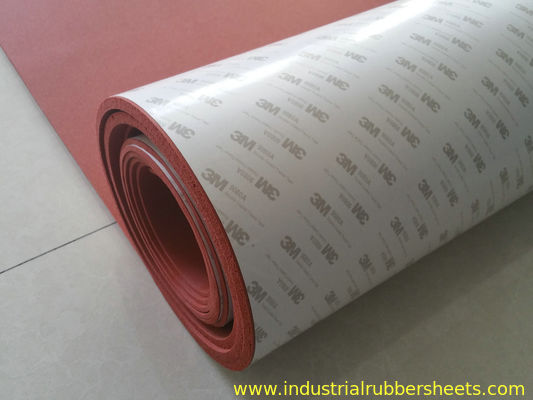

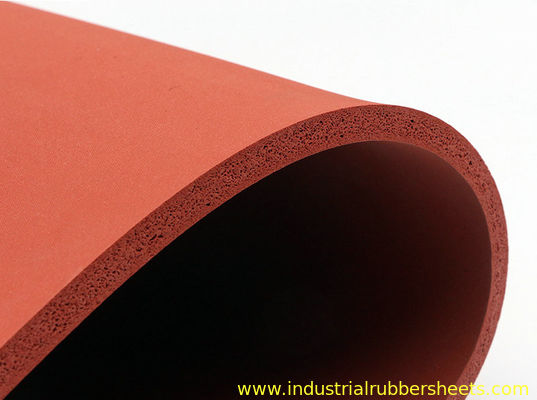

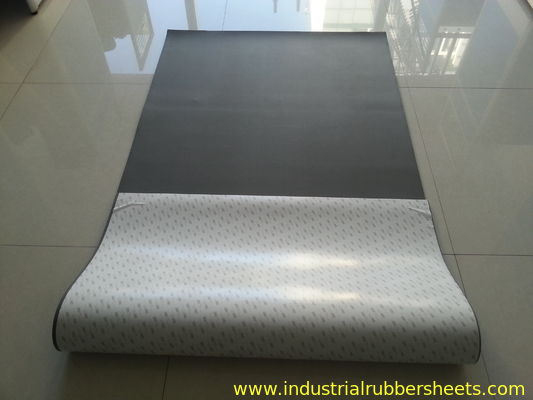

Closed Cell Silicone Foam Sheet with 3M Adhesive Backing for High Temperature Resistance
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat |
| Supply Ability | 100000kgs per month |
Product Details
| Top | Impression Fabric | Bottom | Adhesive 3M Glue |
|---|---|---|---|
| Cell | Close Cell | Material | Silicone Sponge |
| Hardness | Shore A 5-40 | Tensile Strength | 200psi |
| Elongation | 100% | Density | 0.5-1.0g/cm3 |
| Thickness | 1-10mm | Width | 0.1-1.0m |
| Length | 0.1-10m | Working Temperature | -60°C - +260°C(moment 300°C) |
| Elongation At Break | 100% | Temperature Resistance | -60°C To +230°C |
| Ozone Resistance | Excellent | Custom Service | Is Available |
| Oem | OEM Service Available | Gasket | As Per The Buyer's Drawing |
| Size | Customed | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
1 - 10mm x 1 - 1.5m x 10m Silicone Foam Sheet with 3M Adhesive Backing
Product Overview
High-quality silicone foam sheets manufactured using continuous vulcanizing press technology with closed cell or open cell silicone rubber. These sheets feature excellent high temperature resistance, aging resistance, ozone resistance, heat insulation, and fuel/oil resistance properties.
Packaging & Delivery
| Packaging Details | Packed in rolls and pallets |
|---|---|
| Delivery Time | 7 days after deposit |
Key Features
- High temperature resistant (-60°C to +200°C continuous use, -70°C to +260°C intermittent use)
- Aging resistant and ozone resistant
- Excellent heat insulation properties
- Fuel oil and lubricant resistance
- Odorless and durable
- High compressibility with low compression set
- Good acoustic and thermal insulation
Technical Specifications
| Cell Structure | Closed cell |
|---|---|
| Material | Virgin silicone rubber |
| Available Colors | Dark red, black, white, beige, brown, grey, blue, etc. |
| Surface | Double impression fabric |
| Tensile Strength | 100-200 PSI |
| Hardness | 10, 15, 20, 25, 30, 35, 40 ±5 Shore A |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness Range | 1-50 mm |
| Width Range | 0.1-1.5 m (maximum 1.5 m over 5 mm thickness) |
| Length Range | 0.1-10 m |
| Adhesive Options | One side general glue or 3M glue |
Standard Sizes
- 1-50mm * 1.0-1.2m * 10m
- 5-50mm * 1.2-1.5m * 10m
- OEM sizes available
Sponge Mat Model: 3A2002
Material: Silicone sponge | Surface: Top impression fabric with backing adhesive 3M glue
Sponge Mat Features
- Wide operating temperature range
- Water sealing (closed cell structure provides effective sealing with low compressive forces)
- Excellent compression set resistance, especially at higher temperatures
- UV and ozone resistance
- Suitable for outdoor environment gasketing
Applications
- Silicone sponge gaskets
- Cushioning pads
- Heat insulation for ironing tables
- Special gasket applications
Additional Product Information
Perforated silicone sponge sheet available in 6, 8, 10mm * 0.9m * 1.8m sizes in red, beige, and white colors. Custom sizes available for silicone sponge extrusion, profiles, and stripes.
When inquiring, please confirm: color, hardness, surface, size, and quantity requirements.
