1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A

  • 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A
  • 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A
  • 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A
  • 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A
  • 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A1001
Minimum Order Quantity 40m
Price USD2.5-16.00/kg
Packaging Details packing in rolls, bags and pallets
Delivery Time 10-20 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union,D/P,MoneyGram,Alipay,Wechat
Supply Ability 1000000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Special For All Kinds Of Vacuum Laminator Material 100% Virgin Silicone Rubber
Quality High Tear Resistant, Middle Tear Resistant Tensile Strength 7.5-12Mpa
Hardness 40-70shore A Elongation 350-720%
Density 1.25g/m3 Thickness 1-6.0mm
Width 1.5-3.6m Length 10-20m
Keyword Soft Silicone Rubber Sheet Surface Smooth, Textured, Fabric Finish
Elogation 720% Finish Smooth Or Textured Finish
Service OEM ODM
Highlight

silicone gasket sheet

,

flexible rubber sheet
Leave a Message
Product Description
High Performance Silicone Diaphragm Membrane for Vacuum Laminators
Premium tear-resistant silicone sheets specially engineered for vacuum laminating applications. Available in various thicknesses (1-6mm) and roll sizes (1.5-3.6m width x 10-20m length).
Key Applications
  • Solar panel laminators
  • Wooden PVC laminating presses
  • Glass laminating equipment
3A1001-WSO300 Series Features
Specially designed for solar vacuum laminating presses with exceptional performance characteristics:
  • High temperature resistance (230-260°C continuous, 300°C momentary)
  • Superior elasticity and rebound properties
  • Non-stick surface with inert characteristics
  • Resistant to oils, solvents, and aging
  • Chemical and corrosion resistant
  • Odorless and non-contaminating
Product Specifications
Model 3A1001-WSO300A 3A1001-WSO300B
Material 100% virgin Germany silicone rubber 100% virgin China silicone rubber
Primary Application PVC & solar laminators PVC & glass laminators
Color Options Grey Translucent, red, blue
Surface Finish Smooth/smooth Smooth, impression fabric, sand
Tensile Strength 12Mpa 7.5Mpa
Hardness (Shore A) 40 (wooden PVC), 60-70 (solar) 50±5
Elongation at Break 720% 400%
Tear Strength 42N/mm 26N/mm
Temperature Range -60°C to +260°C -60°C to +260°C
Available Sizes 1-6mm × 1.5-3.6m × 10-20m 2-6mm × 1.5-3.6m × 10-20m
Product Images

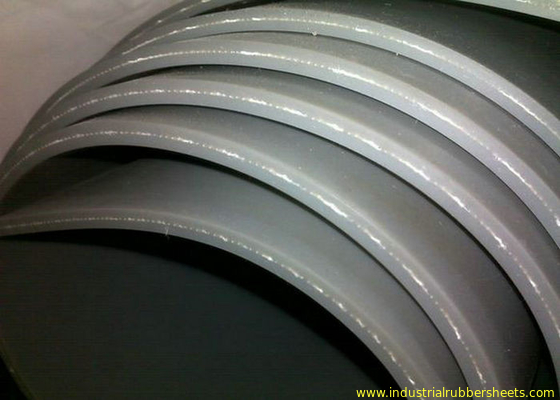

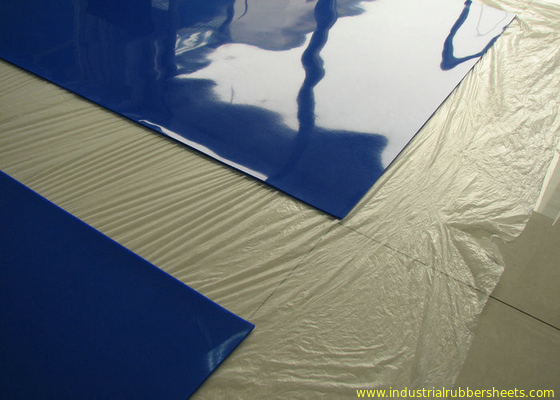

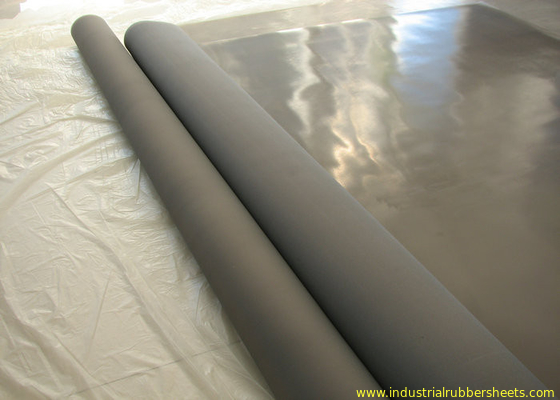

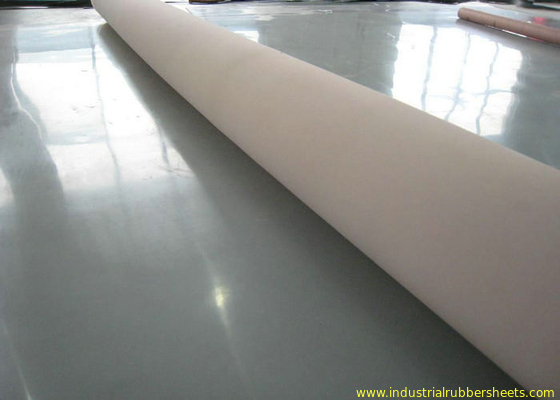

1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A 0 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A 1 1-6mm Silicone Rubber Sheet for Vacuum Laminator 40-70 Shore A 2
