Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube

China Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube supplier
Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube supplier Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube supplier Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube supplier Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube supplier

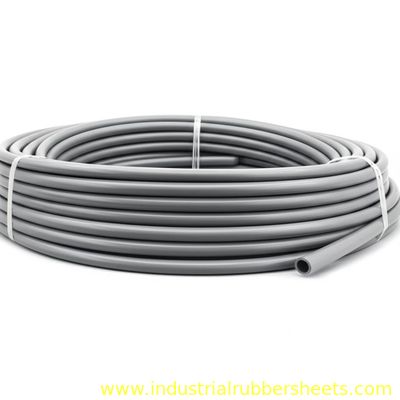

Large Image :  Premium Grade Construction Material PTFE Hose 20Mpa , PTFE PTFE Tube

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3003

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 100000kgs per month
Contact Now
Detailed Product Description
Material: 100% Virgin PTFE Material Color: White, Black
Tensile Strength: 20-30Mpa Hardness: 50-60shore D
Elongation: 200-300% Density: 2.1-2.3g/cm3
Temperature Resist: -180°C - +260°C

premium grade PTFE hose , PTFE tube , PTFE hose , PTFE tube , plastic hose , plastic tube



PTFE hose, tube is made by moulded or extruded with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. Ø2-9mm is made by paste extruded, Ø10-50mm is made by ram extruded, Ø50-300mm is made by moulded. It has the best electrical properties of all plastics. The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication material.



Specifications:
material: 100% virgin PTFE
filling: graphite, carbon, bronze or fiberglass
quality: premium grade, commercial grade
color: white, black
surface: smooth
tensile strength: 20Mpa
hardness: 55+/-5shore D
elongation at break: 200%
density: 2.1-2.3g/cm3
break down voltage: 10KV/mm
temp resist: -180°C - +260°C

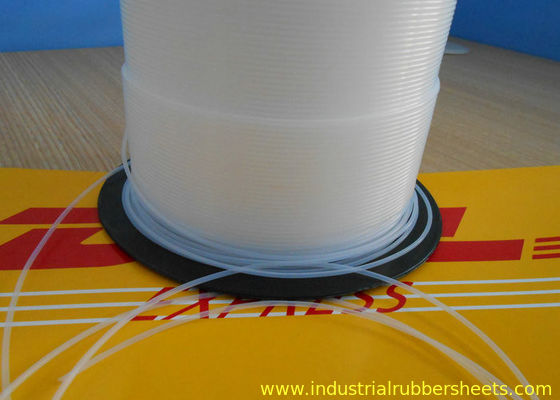

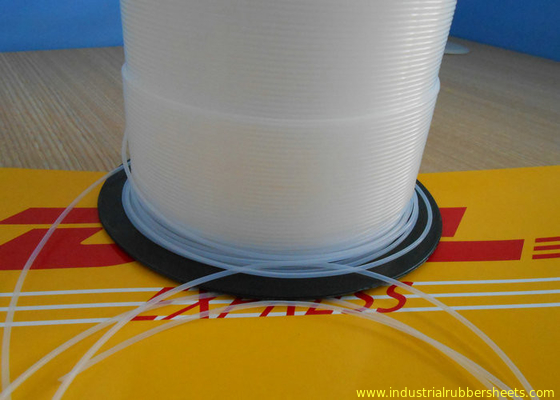

size for soft PTFE tube: Ø2-25mm x Ø4-30mm x 10-50m length
size for extrude PTFE tube: Ø20-400mm x Ø24-440mm x 4000mm length

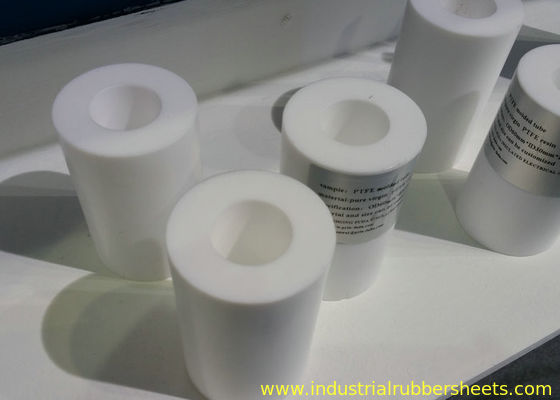

size for moulded PTFE tube: Ø20-200mm x Ø40-400mm x 10-300mm length
black available to fill 3% graphite or 10% carbon
***when you enquiry, pls confirm the color, size and quantity***
