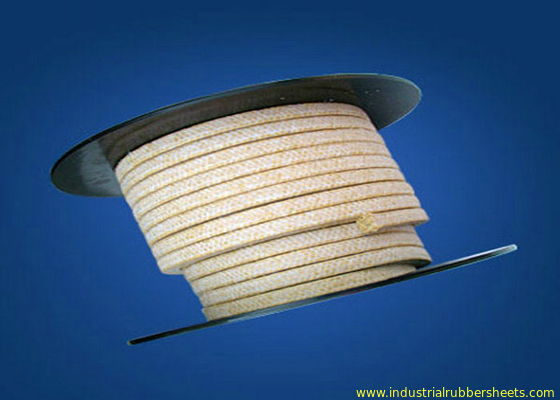

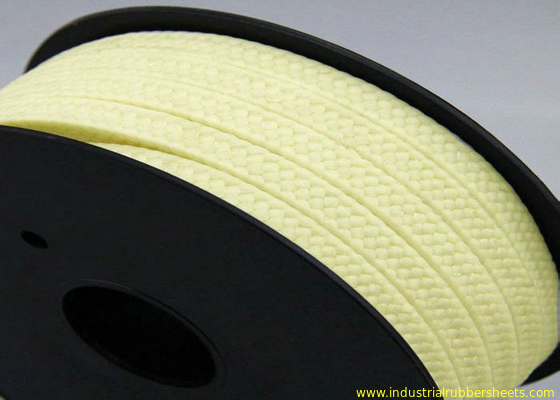

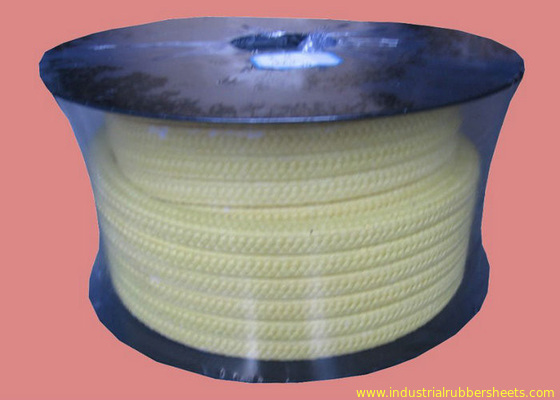

Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

China Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal supplier
Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal supplier Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal supplier Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal supplier

Large Image :  Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3004

Payment & Shipping Terms:

Minimum Order Quantity: 10pieces
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Contact Now
Detailed Product Description
Material: PTFE And Aramid Yarn Fiber Color: Yellow
Structure: Lattice Braid PH Range: 0-14
Working Temperature: -150 ~ +650°C Size: 3-50mm X 3-50mm X 5, 10, 15kgs

aramid fiber braided gland packing for valves & pumps

Packaging & Delivery

Packaging Details: per 5 or 10 kgs in one roll, carton box, export wooden box or pallets
Delivery Detail: against purchase quantity

Specifications

1. Material:PTFE & aramid fiber
2. Temperature resistance:-50 ~ +650 degree C
3. PH range:2~12
4. Application:pumps in all industry



Detailed Introduction

Aramid fiber packing is braided from high quality Dupont aramid fiber with PTFE impregnated and lubricant additive. It shows good chemical resistance, high elasticity and very low cold flow. It can resist severe media and higher pressure. The packing is lubricated with silicone based compound for quick and easy break-in.



Product Features

  • It is wear resistant but may damage the shaft if not used properly.
  • A minimum shaft hardness of 60HRC is therefore recommended.
  • Superior performance
  • Lower frictional factor



Material Aramid Fiber (with or without PTFE impregnated)
Temperature Range  -100 up to +280 oC
Rotating 25 bar
Reciprocating 100 bar
Static 250 bar
Shaft Speed 25m/s
PH 2~12
Density Appr. 1.4g/cm3



Typical Application

  • This is a universal packing which can be used for pumps in all types of industry.
  • Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
  • A durable packing able to withstand granular and abrasive applications.
