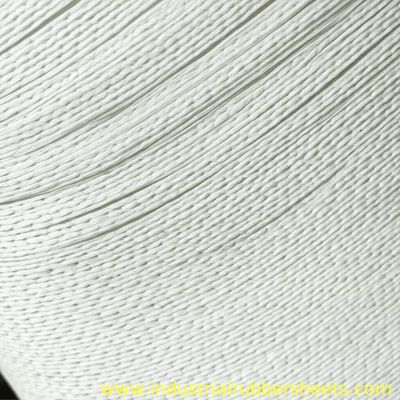

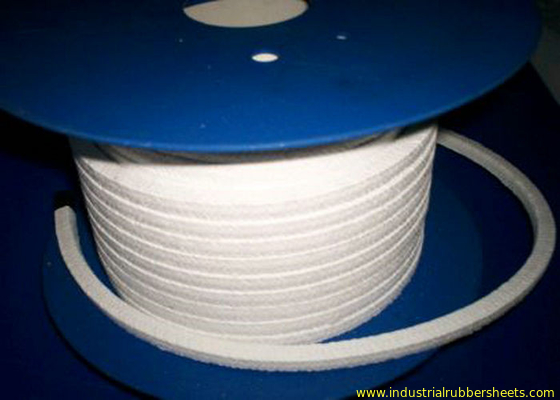

White Lattice Braided PTFE Packing with Working Pressure 2-20Mpa and Temperature Range -240°C to +288°C for High-Performance Sealing
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3004 |
| Minimum Order Quantity | 10pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PTFE Yarn Fiber, PTFE Filament | Color | White |
|---|---|---|---|
| Structure | Lattice Braid | Working Press | 2-20Mpa |
| Working Speed | 2-20m/s | Working Temperature | -240°C ~ +288°C |
| Size | 3-50mm X 3-50mm X 5, 10, 15kgs | ||
| Highlight | ptfe packing material,ptfe graphite packing |
||
Product Description

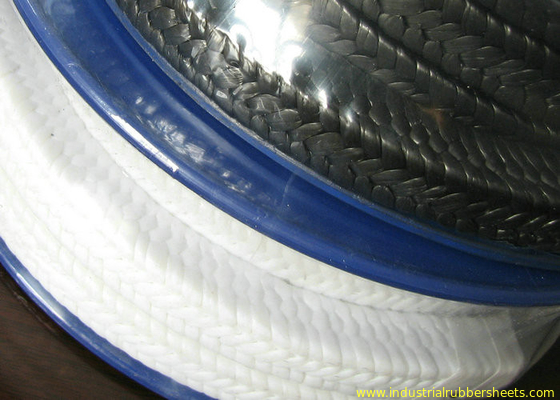

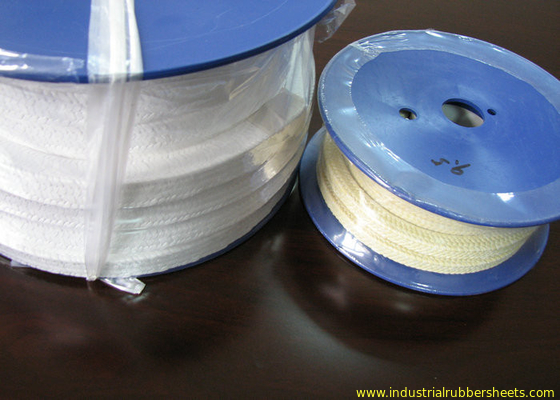

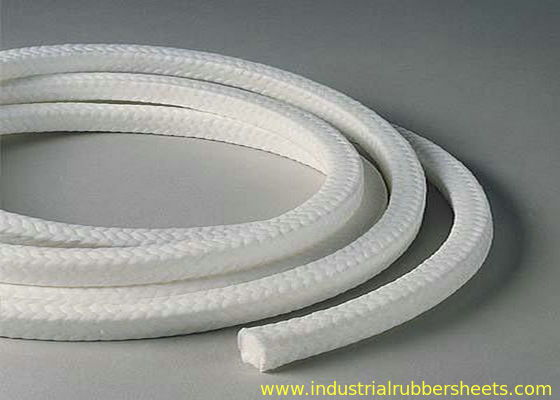

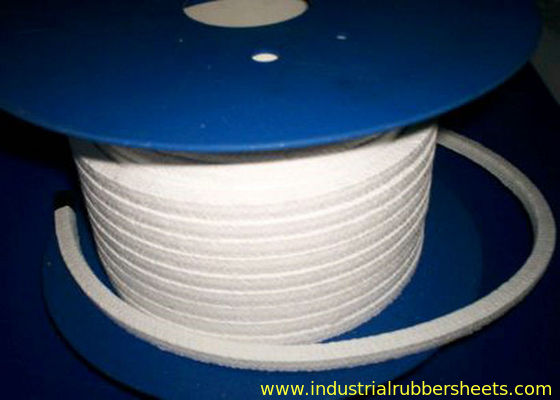

White Lattice Braided PTFE Packing, PTFE Packing With Oil Or Without Oil
Product Description
Hot sales pure graphite packing for steam valve pump from China
Key Characteristics
- PTFE packing is an excellent sealing material, braided from PTFE strips
- High cross-sectional density and structural strength
- Low coefficient of friction for easy shaft running
- Long lubricant retention under operating pressure
Applications
Ideal for dynamic seals at high linear speeds, commonly used in check and needle valve stems, reciprocating rods, rams, plungers, and safety injection system valves.
Specifications
- Pressure: 2MPa in centrifugal pumps, 10MPa in piston pumps, 20MPa in valves
- Temperature: <280°C
- Linear speed: 4m/s in centrifugal pumps, 2m/s in piston pumps, 2m/s in valves
- PH range: 0 - 14
- Thickness: 3.0 - 50mm
Technical Specifications
| Commodity | Item | Rotating | Reciprocating | Static |
|---|---|---|---|---|
| White pure PTFE packing without lubricant and PTFE emulsion, braided from PTFE dispersion for valves and lower shaft speed applications in food processing, pharmaceuticals, paper mills, and fiber plants where high purity and corrosion resistance is required | Working pressure (bar) | 15 | 100 | 150 |
| Shaft speed (m/s) | 6 | 3 | ||
| Temperature | -150 ~ +260°C | |||
| PH range | 0-14 | |||
| White PTFE packing with lubricant, braided from PTFE dispersion and lubricant for valves and lower shaft speed applications in food processing, pharmaceuticals, paper mills, and fiber plants where high purity and corrosion resistance is required | Working pressure (bar) | 15 | 100 | 200 |
| Shaft speed (m/s) | 6 | 3 | ||
| Temperature | -150 ~ +260°C | |||
| PH range | 0-14 | |||
| White PTFE packing with silicone core, braided with PTFE yarn and blended with silicone rubber core for valves and lower shaft speed applications in food processing, pharmaceuticals, paper mills, and fiber plants where high purity and corrosion resistance is required | Working pressure (bar) | 15 | 100 | 150 |
| Shaft speed (m/s) | 6 | 3 | ||
| Temperature | -150 ~ +260°C | |||
| PH range | 0-14 | |||
