2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness

  • 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness
  • 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness
  • 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness
  • 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness
  • 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms T/T,L/C,Paypal,Western Union,D/P,MoneyGram
Supply Ability 100000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Non-toxic, Odorless Application For Corona Roller
Quality Industrial Grade Material High Tear Resistant Silicone Rubber
Hardness 60-70shore A Elongation 400% - 600%
Density 1.25g/cm3 Working Temperature -60°C - +260°C(moment 300°C)
Resistant 18-25KV/mm Wall Thickness 3-4mm
Resistance High Temperature, UV, Ozone, Chemicals Inner Diameter 1mm - 50mm
Oem Odm Available Temperature Range -60°C To +200°C
App For Industrial Roller Process Extrusion
Customization Size, Color, Hardness, Length, Printing Fda Compliance Yes
Reinforced Insert 1-4PLY Fabric Flexibility Flexible
Keyword Silicone Tube Compression Set 35%
Insert Polyester Size As Per The Buyer's Drawing
Highlight

flexible silicone tubing

,

silicone rubber pipe
Leave a Message
Product Description

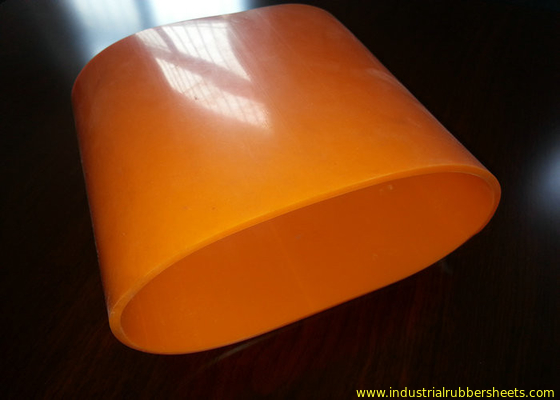

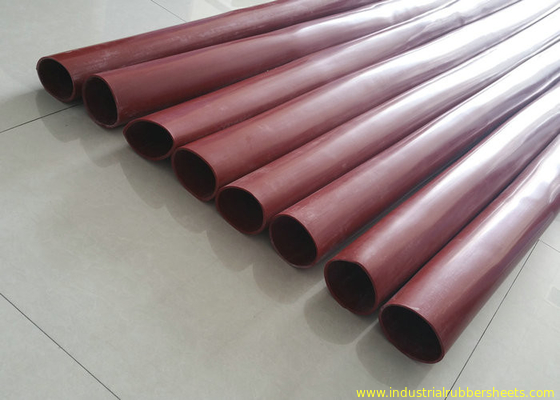

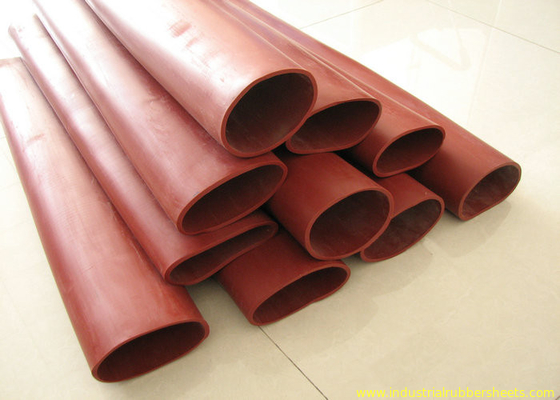

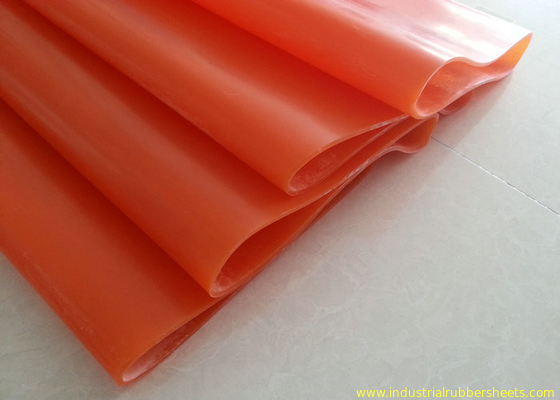

2m Length Silicone Tube Extrusion for Corona Roller / Silicone Rubber Sleeving

Premium orange, red, and black silicone sleeves and tubes specifically designed for corona rollers with a maximum length of 2 meters. These high-performance silicone components are engineered for corona machine applications.

Key Features
  • Manufactured from high-quality silicone rubber resistant to high voltage and flame retardant
  • Ensures uniform high voltage corona spark distribution for effective plastic film surface activation
  • Excellent for printing color on plastic film after corona treatment
  • Withstands up to 25KV at 1mm wall thickness
  • Versatile applications: roller sleeves, high-voltage terminals, protective sleeves, and flexing tubing
Technical Specifications
Material 100% virgin silicone from Germany
Available Colors Orange, dark red, black
Tensile Strength 8-12Mpa
Hardness 60-70 Shore A
Elongation 400%-720%
Density 1.25g/cm³
Working Temperature -60°C to +250°C
Voltage Resistance 18-25KV/mm
Wall Thickness Options 3.0mm, 4.0mm
Standard Sizes (ID x OD x Length)

Ø32mm x Ø38mm x 2m, Ø32mm x Ø40mm x 2m, Ø34mm x Ø42mm x 2m, Ø46mm x Ø54mm x 2m, Ø50mm x Ø58mm x 2m, Ø55mm x Ø62mm x 2m, Ø60mm x Ø66mm x 2m, Ø60mm x Ø68mm x 2m, Ø63mm x Ø71mm x 2m, Ø67mm x Ø75mm x 2m, Ø75mm x Ø83mm x 2m, Ø80mm x Ø88mm x 2m, Ø90mm x Ø98mm x 2m, Ø98mm x Ø102mm x 2m, Ø106mm x Ø114mm x 2m, Ø140mm x Ø150mm x 2m, Ø145mm x Ø153mm x 2m, Ø162mm x Ø172mm x 2m

Custom OEM sizes available upon agreement.

2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness 0 2m Industrial Silicone Tube for Corona Roller 60-70 Shore A Hardness 1
Important: When requesting a quote, please specify your requirements for color, quality, hardness, size, and quantity.
