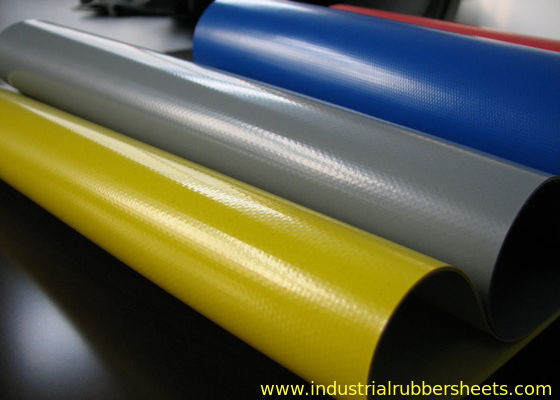

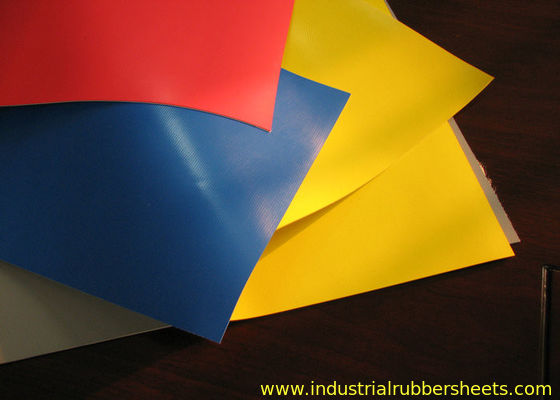

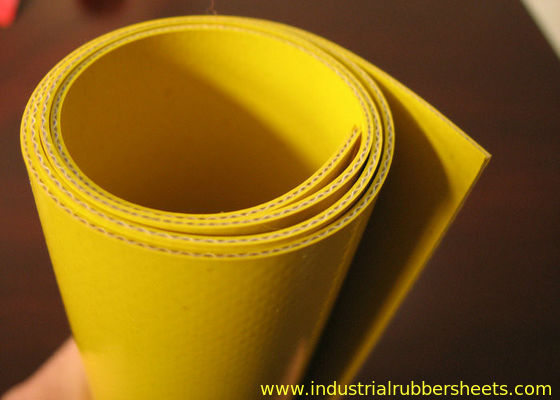

Weather Resistant Hypalon Fabric Sheet and Acid Alkaline Resistant Neoprene Rubber Sheet with 1.0-6.0mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5009 |
| Minimum Order Quantity | 100SQM |
| Price | FCA Shanghai China USD19.50/sqm |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat |
| Supply Ability | 1000000SQM per month |
Product Details
| Material | Hypalon+fabric+neoprene | Quality | Industrial Grade |
|---|---|---|---|
| Color | Red, Black, White, Yellow, Grey, Blue Etc. | Surface | Smooth |
| Thickness | 1.0-6.0mm | Width | 1-1.5m |
| Length | 1-50m | ||
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description

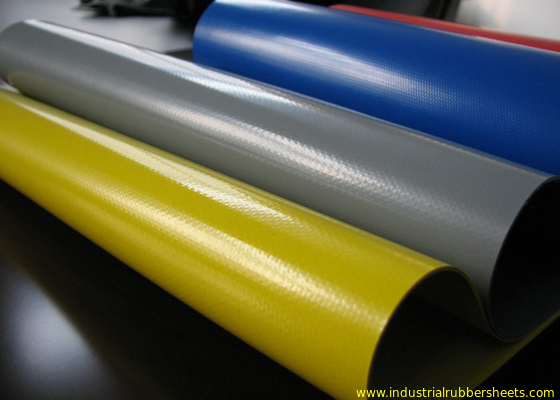

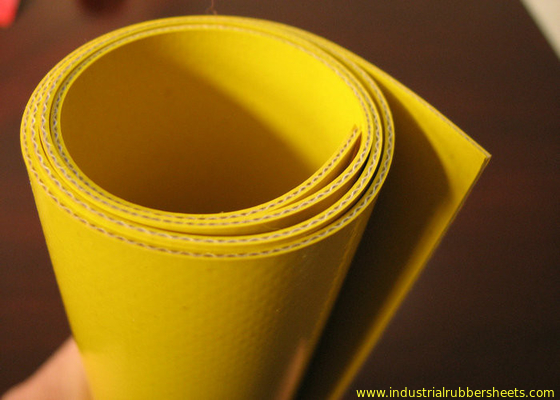

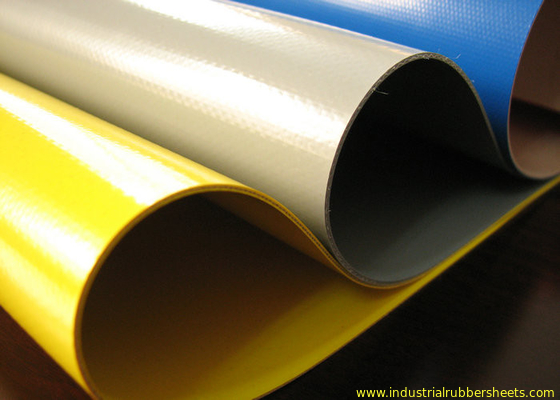

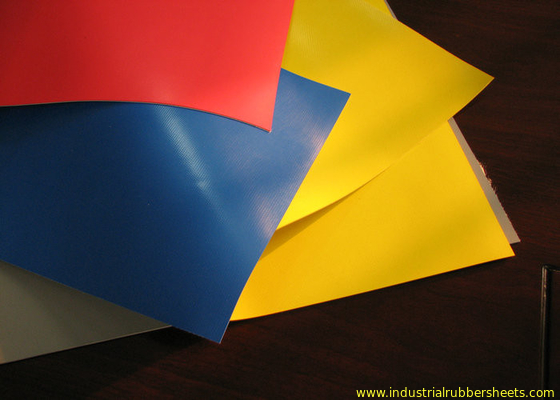

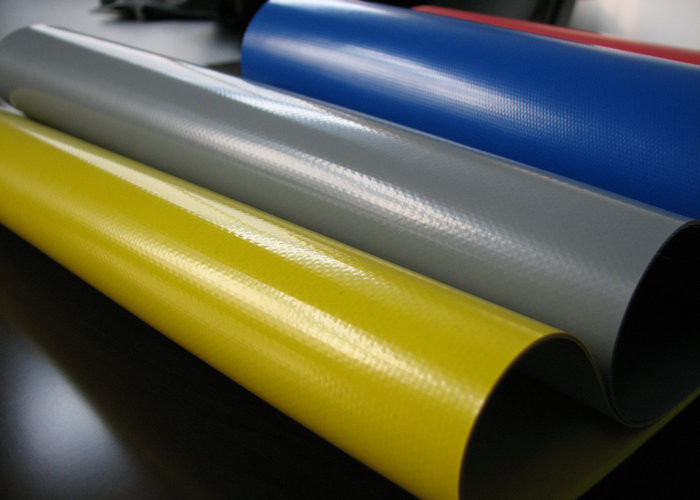

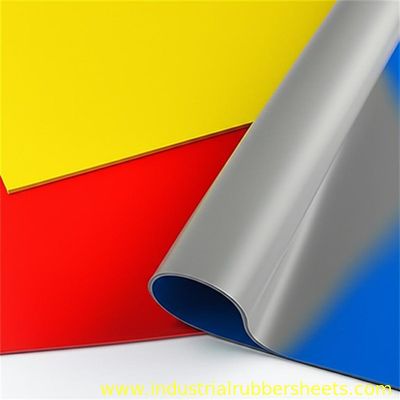

Hypalon Fabric Sheet & Industrial Neoprene Rubber Sheet
Keywords: hypalon fabric, hypalon sheet, hypalon roll, neoprene fabric, neoprene sheet, neoprene roll
Our rubber fabric and rubber diaphragm products are manufactured using specialized rotocure machines with various fabric reinforcements and rubber materials. We utilize different fabric types including nylon, polyester, EP fabric, glassfiber, and aramid fabric, coated with various rubber materials such as hypalon, nitrile, neoprene, silicone, and fluorubber.
Hypalon offers excellent weather and water resistance, rugged durability while remaining lightweight and easy to handle - ideal for inflatable boats. Neoprene provides resistance to acids and alkalis, nitrile offers oil resistance, while silicone and FKM withstand high temperatures and corrosion. Our colorful coated fabrics are perfect for hatch and boat covers, radomes, inflated structures, and are ideal for quality awnings, boating garb, convertible tops, and other consumer products.
Applications: Inflatable boats, rafts, life-floats, high-speed trains, buses, rubber diaphragms, rubber gaskets, and other specialized purposes.
Specifications
| Parameter | Specifications |
|---|---|
| Material | Coated hypalon, neoprene, nitrile, silicone, fluorubber, etc. |
| Insertion | Reinforced with 1-3PLY cotton, polyester, nylon, glassfiber, aramid, EP fabric |
| Color | Black, red, yellow, grey, blue, white, etc. |
| Surface | Smooth or impression fabric |
| Tensile Strength | 8.0 MPa |
| Hardness | 60-70 shore A |
| Elongation | 350% |
| Density | 1.4 g/cm³ |
| Thickness | 0.4-6.0 mm |
| Width | 1.0-1.5 m |
| Length | 10, 20, 30, 50 m |
Standard Sizes - NBR Fabric
| Thickness | Width | Length | Ply |
|---|---|---|---|
| 0.5 mm | 1.0 m | 10 m | 1 PLY |
| 0.8 mm | 1.0 m | 10 m | 1 PLY |
| 1.0 mm | 1.0 m | 10 m | 1 PLY |
| 1.5 mm | 1.0 m | 10 m | 1 PLY |
| 2.0 mm | 1.0 m | 10 m | 1 PLY |
| 3.0 mm | 1.0 m | 10 m | 2 PLY |
| 4.0 mm | 1.0 m | 10 m | 2 PLY |
| 5.0 mm | 1.0 m | 10 m | 2 PLY |
| 6.0 mm | 1.0 m | 10 m | 2 PLY |
Standard Sizes - Hypalon Fabric
| Fabric Weight | Dimensions | Coating |
|---|---|---|
| 555 dtex / 500 deniers / 710 g/sqm | 0.6 mm * 1.2 m * 50 m | Hypalon/Hypalon |
| 1100 dtex / 990 deniers / 1300 g/sqm | 1.0 mm * 1.5 m * 50 m | Hypalon/Neoprene, Hypalon/Hypalon |
| 1670 dtex / 1500 deniers / 1500 g/sqm | 1.2 mm * 1.5 m * 50 m | Hypalon/Neoprene, Hypalon/Hypalon |
Note: OEM and customized sizes are available upon agreement. Products are packed in rolls and pallets.
Important: When making an enquiry, please confirm the rubber type, fabric type, color, size, and quantity requirements.
