1.15g/Cm3 Density Polyurethane Coupling Standard Size Virgin TPU Material

10pieces
MOQ
USD0.35/piece
Price
1.15g/Cm3 Density Polyurethane Coupling Standard Size Virgin TPU Material
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Virgin TPU
Color: Yellow
Tensile Strength: 30Mpa
Hardness: 93Shore A
Elongation: 560%
Density: 1.15g/cm3
Size: Standard Size
Packing: In Cartons
High Light:

pu coupling

,

rubber coupling

Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A2006
Payment & Shipping Terms
Packaging Details: packing in cartons
Delivery Time: 7-15days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000pieces/month
Product Description

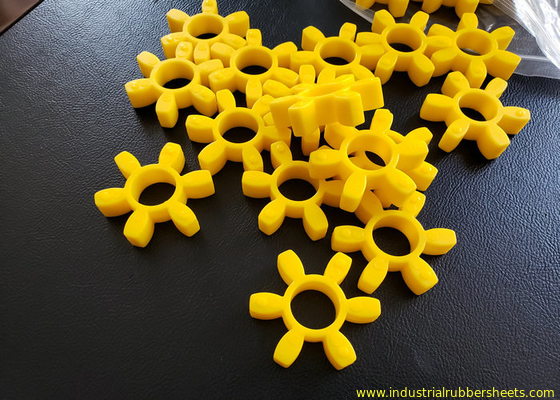

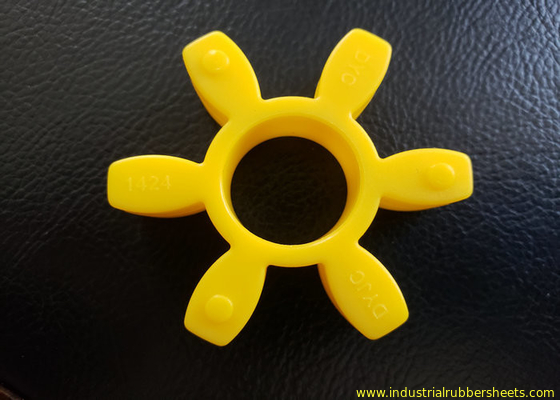

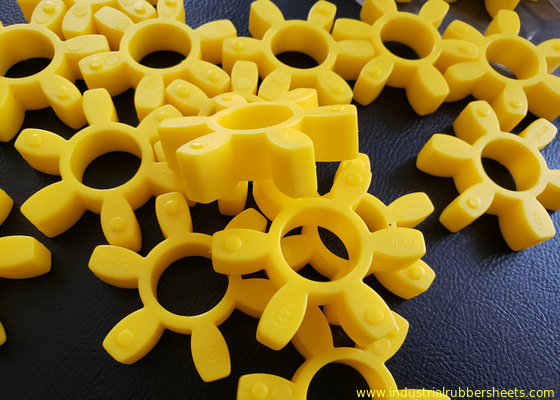

93shore A Yellow Joong Ang Coupling , Joong Ang Element , Joong Ang Spider for Vessel Industrial



Joong Ang Coupling
MS Coupling
Size Material Hardness OD(mm) ID(mm) Thickness H(mm) ThicknessH1(mm) Lamella Qty
CR0050/MS0511 Yellow TPU 93Shore A 25 9.5/12.5 10 11.2 6
CR0070/MS0714 Yellow TPU 93Shore A 35 13.7/19.0 13 15 6
CR0010/MS1119 Yellow TPU 93Shore A 48 17.0/23.5 14 16 6
CR0020/MS1424 Yellow TPU 93Shore A 58 22.0/28.8 15 17 6
CR2035A/MS1928 Yellow TPU 93Shore A 66.5 26.0/32.0 17 19 6
CR2035/MS1938 Yellow TPU 93Shore A 78 30.4/40.0 19 20 6
CR3545/MS2845 Yellow TPU 93Shore A 98 43.0/50.0 20 24 6
CR4560/MS3860 Yellow TPU 93Shore A 116 55.0/62.0 21 25 6
CR6070/MS4275 Yellow TPU 93Shore A 131 62.0/70.5 26 28 6
CR7080/MS6510 Yellow TPU 93Shore A 156 60.0/85.0 34 38 6



1.15g/Cm3 Density Polyurethane Coupling Standard Size Virgin TPU Material 0

1.15g/Cm3 Density Polyurethane Coupling Standard Size Virgin TPU Material 1



1.15g/Cm3 Density Polyurethane Coupling Standard Size Virgin TPU Material 2



Description: the polyurethane elastomeric is a new material of polymer synthetic between rubber and plastic. It has both high strength of plastic and high elasticity of rubber. Its characteristics are: 1, a wide range of hardness. It still has rubber elongation and resilience at high hardness. The polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high strength. At rubber hardness, the tensile strength, tear strength and load carrying capacity are much higher than general rubber material. At high hardness, its impact strength and flexural strength are much higher than plastic material. 3, wear-resistant. Its wear resistance is very outstanding, generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber material. 4, oil resistant. The polyurethane elastomeric is a highly polar polymer compound which has low affinity with non-polar mineral oil and is hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and ozone. 6, excellent vibration absorption performance, can do damping and buffering. In the mold manufacturing industry, it replaces rubber and springs.7, has good low temperature performance. 8, radiation resistance. Polyurethane is highly resistant to high energy radiation and has satisfactory performance at 10-10 deg radiation dose. 9, with good machining performance.



The polyurethane coupling, rubber coupling are made by injection with high quality TPU material or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets injection moulds and supply full range of GR, GS, MT, ML, MH, Hb, HRC, L, T, NM and Gear J series couplings etc. with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.



Specifications:

material: TPU, CSM/SBR, NBR, nylon etc.

color: yellow, red, purple, green, black, beige etc.

surface: smooth

tensile strength: 8-55Mpa

hardness: 70-98Shore A

elongation: 400%-650%

density: 1.25g/cm3

elasticity impact: >25%

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

standard size for polyurethane coupling:

GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13

MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

SBT T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

Joong Ang CR0050, 0070, 0010, 0020, 2035, 2035A, 3545, 4560, 6070, 7080

MS0511, MS0714, MS1119, MS1424, MS1928, MS1938, MS2845, MS3860, MS4275, MS6510

D14, D14L, D20, D25, D30, D30L, D35, D40, D45, D49, D55, D65

5H, 6H, 7H, 8H, 9H, 10H, 11H



standard size for rubber coupling:

Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10

FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#

FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 12J, 13J, 14J

Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H

Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160

SBT T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T210

FCLpin #1, #2, #3, #4, #5, #6, #8

GR42, GR48, GR55, GR65, GR75



standard size for nylon coupling:

NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10

M28, M32, M38, M42, M48, M58, M65

packing in cartons

OEM & customized size are agreed

special supply all kinds of steel coupling for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, Tyre

***when you enquiry, pls confirm type, size number and quantity***
