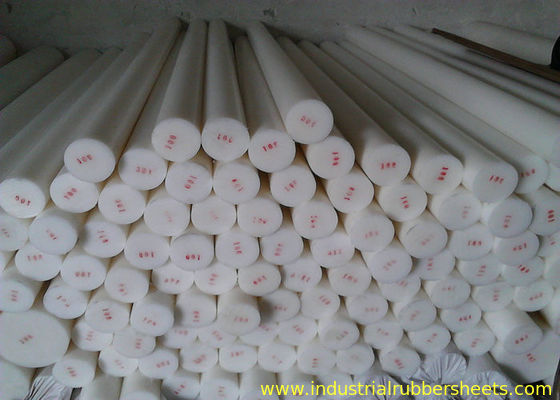

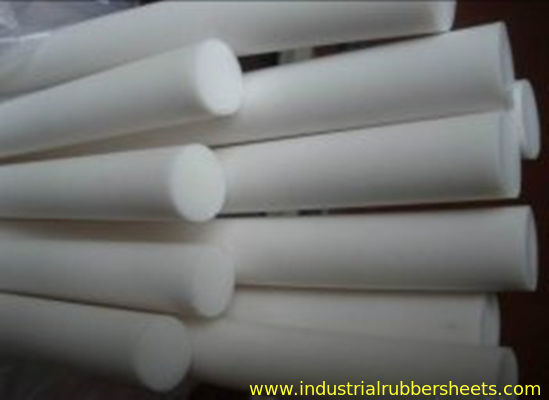

Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3001 |
| Minimum Order Quantity | 100kgs |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000000pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Virgin PTFE | Quality | Premium Grade |
|---|---|---|---|
| Color | White, Black | Surface | Smooth/smooth |
| Tensile Strength | 20-30Mpa | Hardness | 55+/-5shore D |
| Elongation At Break | 200%-320% | Density | 2.1-2.3g/cm3 |
| Break Down Voltage | 10KV/mm | Temperature Resist | -180°C - +260°C |
| Highlight | ptfe coated fiberglass cloth,silicone coated fiberglass fabric |
||
Product Description

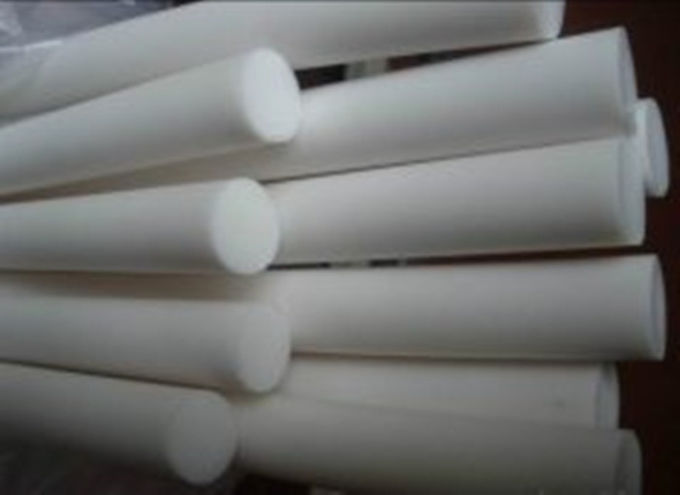

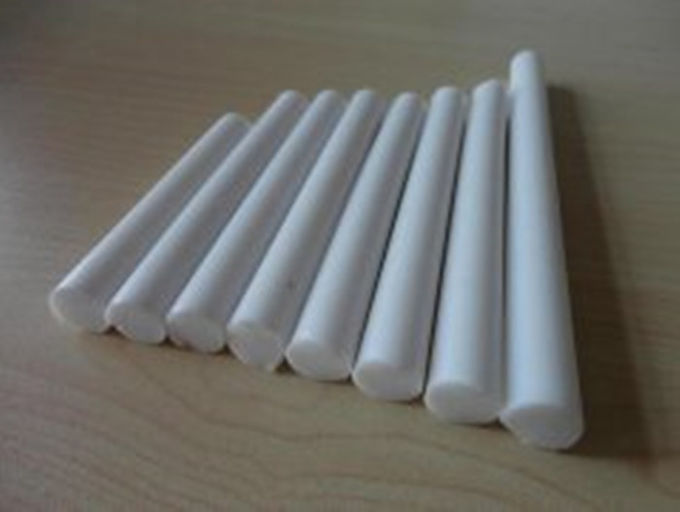

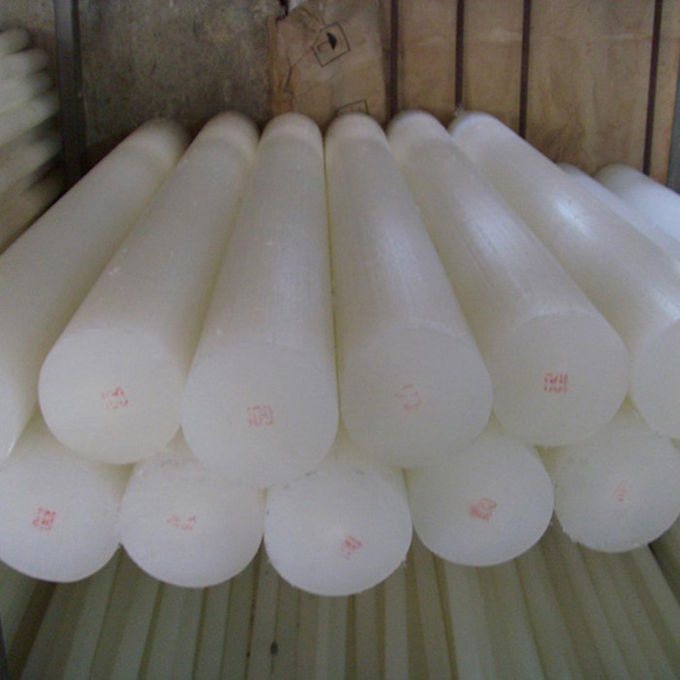

Premium Grade 100% Virgin PTFE Rod
Our white PTFE rods offer exceptional corrosion resistance and are manufactured from 100% virgin polytetrafluoroethylene material. These rods represent the highest quality polymer material for chemical resistance among all known plastics.
Key Features & Benefits
- Superior chemical resistance - the best among all known plastic materials
- Excellent weathering resistance and dielectric properties
- Lowest coefficient of friction among all solid materials
- Wide operating temperature range: -180°C to +260°C
- Wax-like non-stick surface prevents material adhesion
- Outstanding electrical insulation properties
Technical Specifications
| Material | Virgin PTFE |
| Quality Grade | Premium |
| Available Colors | White, Black, Brown |
| Surface Finish | Smooth |
| Tensile Strength | 20-30 MPa |
| Hardness | 55±5 Shore D |
| Elongation at Break | 200% |
| Density | 2.1-2.3 g/cm³ |
| Breakdown Voltage | 10 KV/mm |
| Temperature Resistance | -180°C to +260°C |
Manufacturing Methods
Our PTFE rods are manufactured using specialized processes based on diameter requirements: Ø4-9mm (paste extruded), Ø10-50mm (ram extruded), and Ø50-300mm (moulded).
Standard Sizes Available
Ø6mm x 1m
Ø7mm x 1m
Ø8mm x 1m
Ø10mm x 1m
Ø12mm x 1m
Ø15mm x 1m
Ø16mm x 1m
Ø18mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø28mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø135mm x 1m
Ø140mm x 1m
Ø145mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø190mm x 1m
Ø195mm x 1m
Ø200mm x 1m
Ø210mm x 1m
Ø220mm x 1m
Ø230mm x 1m
Ø250mm x 1m
Ø260mm x 0.3m
Ø270mm x 0.3m
Ø280mm x 0.3m
Ø290mm x 0.3m
Ø300mm x 0.3m
Ø350mm x 0.3m
Ø400mm x 0.3m
Special Options
Black PTFE rods are available with either 3% graphite or 10% carbon fillers for enhanced performance characteristics.
Important: When requesting a quotation, please specify the required color, size, and quantity for accurate pricing and availability.
