ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

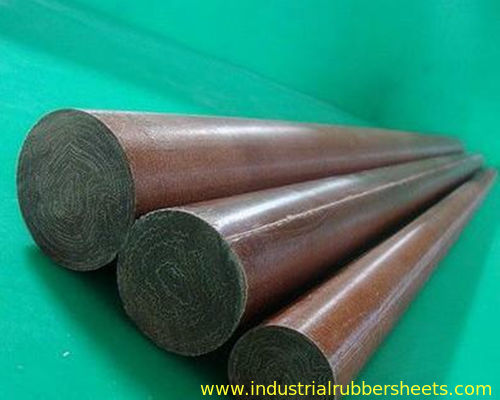

ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application

China ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application supplier
ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application supplier ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application supplier ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application supplier ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application supplier

Large Image :  ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application

Product Details:

Place of Origin: China
Brand Name: 3Arubber
Certification: ISO9011
Model Number: 3A6013

Payment & Shipping Terms:

Minimum Order Quantity: 50kgs
Price: USD2.80/KG
Packaging Details: packed in creates
Delivery Time: 2-3 weeks after recieved your payment
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 1000000kgs per month
Contact Now
Detailed Product Description
Material: Phenolic+cotton Color: Brown,orange,black
Surface: Smooth Tensile Strength: 78Mpa
Compression Strength: 138Mpa Density: 1.25-1.40g/cm³
Rated Voltage: 10kv OD: 10-200mm
Length: 1-3m

Phenolic Cotton Rod, Phenolic Paper Rod,Bakelite Sheet, Cotton Sheet, Insulation Sheet for High Voltage Application



Description: the phenolic cotton rod, phenolic paper rod are created from cotton cloth that has been impregnated with phenolic resin under pressure and heat. Have low water absorption rate, high mechanical strength, good electric performance wether under the moist or dry environment and high temperature resistant, high dielectric performance and mechanical processing performance. Apply to PCB fixture, ICT fixture, pads of drilling machine, gear, motor, generator, transformer, fixture inverter, switch, electric insulation part, generator, transformer, fixture, inverter, motor and electric insulation component.



Specification:
materuial: phenolic resin+cotton fabric or paper
color: brown, beige, yellow, red
surface: smooth
tensile strength: 78Mpa
flexural strength: 90-110Mpa
compression strength: 138Mpa
breakdown voltage: 10KV
density: 1.25-1.40g/cm3
heat-resistant: B class 130
size: od8-200mm x 1m



Bakelite is called phenolic paper laminated sheet. A hard, dense material made by applying heat and pressure to layers of paper or glass cloth impregnated with phenolic resin. These layers of laminations are usually of cellulose paper, cotton fabrics, synthetic yarn fabrics, glass fabrics or unwoven fabrics. When heat and pressure are applied to the layers, a chemical reaction (polymerization) transforms the layers into a high-pressure thermosetting industrial laminated plastic.

Color: orange red / Black

Good electrical properties
Good mechanical properties
No water absorption
High heat resistance
Good surface hardness
Abrasion resistance
Good insulation


Application
PCB fixture, ICT fixture, pads of drilling machine
Gear, motor, generator, transformer, fixture inverter
Switch, electric insulation part
Generator, transformer, fixture, inverter, motor and electric insulation component.



Properties Grade
Phenolic Cotton Cloth laminated Rod
Properties Units 3723 3725 3726
Density   Dia(mm) g/cm3 1.25-1.40 1.25-1.40 1.25-1.40
Water absorption rate (D-24/23) 6 % 1.7 1.2 1
13 1.3 (Φ13mm) (Φ13mm)
25 1
> 25~51 1.2
Flexural strength   MPa 90 110 95
Tensile strengh   MPa 78
Compression strength (Axial)   MPa 138 138 138
Insulation resistance parallel to laminations
A: Under normal condition   W 1.0×108
D-24/23: Immersion in water   W
Breakdown voltage parallel to laminations (in transformer oil)   KV 10 10 10
  (20±5°C) (20±5°C) (20±5°C)
Flammability     - - - -
Color     - Natural Natural Natural
Reference standard     - Enterprise Standard



ISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage ApplicationISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage ApplicationISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage ApplicationISO9011 Standard Phenolic Cotton Rod 10-200mm OD For High Voltage Application
