Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications

  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
  • Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3001
Minimum Order Quantity 100kgs
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 1000000pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin PTFE Quality Premium Grade
Color White, Black Surface Smooth/smooth
Tensile Strength 20-30Mpa Hardness 55+/-5shore D
Elongation At Break 200%-320% Density 2.1-2.3g/cm3
Break Down Voltage 10KV/mm Temperature Resist -180°C - +260°C
Highlight

ptfe coated fiberglass cloth

,

silicone coated fiberglass fabric
Leave a Message
Product Description
White / Black 100% Virgin PTFE Sheet 3A3001 Tensile Strength 20-30Mpa
100% Virgin PTFE Sheet with tensile strength of 20-30Mpa, available in white and black colors. Manufactured using premium grade polytetrafluoroethylene material through moulding or skiving processes.
Product Overview
PTFE sheets are manufactured using high-quality polytetrafluoroethylene material through moulding or skiving processes. As the most chemically resistant polymer material among all known plastics, PTFE offers exceptional corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all solid materials. These sheets are widely used as corrosion-resistant linings, seals, gaskets, guides, electrical insulation parts, and bearing pads for bridges. PTFE is known for its non-aging properties.
Technical Specifications
Material Virgin PTFE
Quality Premium Grade
Color White, Black
Surface Smooth/Smooth
Tensile Strength 20-30Mpa
Hardness 55+/-5 Shore D
Elongation at Break 200%-320%
Density 2.1-2.3g/cm³
Break Down Voltage 10KV/mm
Temperature Resistance -180°C to +260°C
Available Sizes
PTFE Moulded Sheet Sizes
  • 1.0-60mm x 150mm x 150mm
  • 1.0-60mm x 250mm x 250mm
  • 1.0-60mm x 300mm x 300mm
  • 1.0-60mm x 450mm x 450mm
  • 1.0-60mm x 600mm x 600mm
  • 2.0-60mm x 800mm x 800mm
  • 2.0-60mm x 1000mm x 1000mm
  • 2.0-60mm x 1200mm x 1200mm
  • 2.0-60mm x 1500mm x 1500mm
  • 2.0-60mm x 1000mm x 2000mm
PTFE Skived Sheet Sizes
  • 0.3-6.0mm x 300mm x 10, 15, 20m
  • 0.3-6.0mm x 600mm x 10, 15, 20m
  • 0.3-6.0mm x 1000mm x 10, 15, 20m
  • 0.3-6.0mm x 1200mm x 10, 15, 20m
  • 0.3-6.0mm x 1500mm x 10, 15, 20m
  • 0.3-6.0mm x 2000mm x 10, 15, 20m
Packing: Available in rolls and pallets
Important: When making an enquiry, please confirm the material, size, and quantity requirements.
Product Images

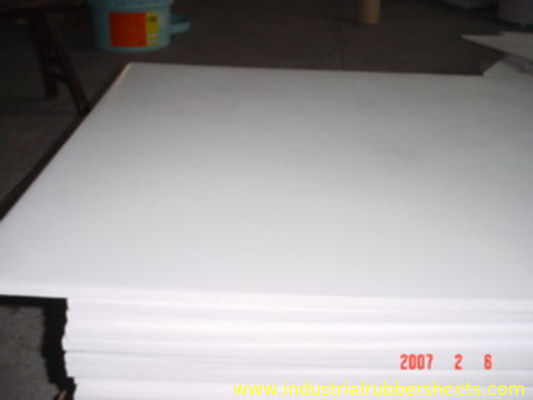

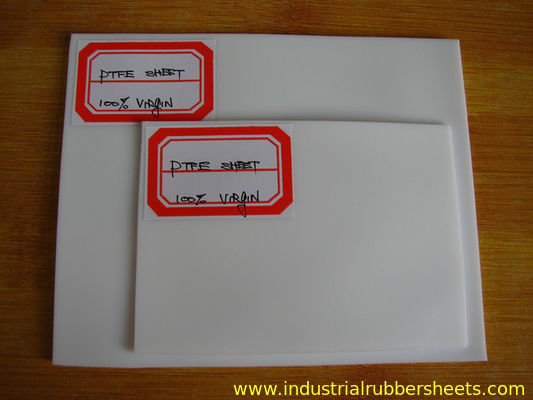

Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications 0

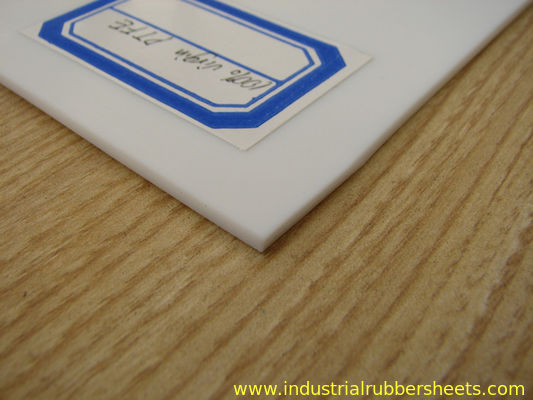

Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications 1

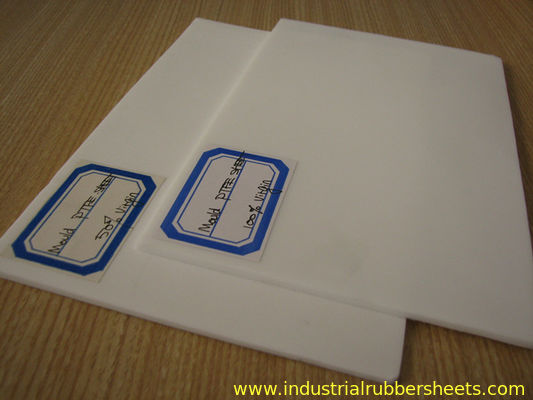

Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications 2

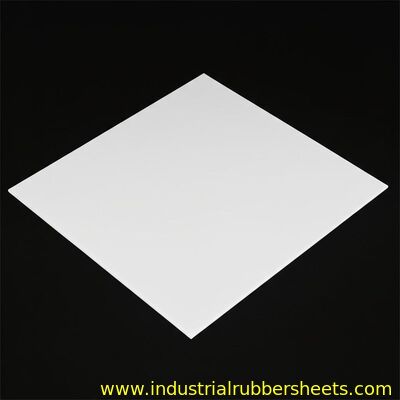

Virgin PTFE Sheet with 20-30Mpa Tensile Strength and -180°C to +260°C Temperature Resistance for Industrial Applications 3
