Product Details:
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3001
Payment & Shipping Terms:
Minimum Order Quantity: 100kgs
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000000pieces per month
Detailed Product Description
Material: Virgin PTFE Quality: Premium Grade
Color: White, Black Surface: Smooth/smooth
Tensile Strength: 20-30Mpa Hardness: 55+/-5shore D
Elongation At Break: 200%-320% Density: 2.1-2.3g/cm3
Break Down Voltage: 10KV/mm Temperature Resist: -180°C - +260°C
High Light:

ptfe coated fiberglass cloth

,

silicone coated fiberglass fabric


100% Virgin PTFE or 70% Virgin PTFE for PTFE Rod, PTFE Rod With Excellent Characteristics of Corrosion Resistance

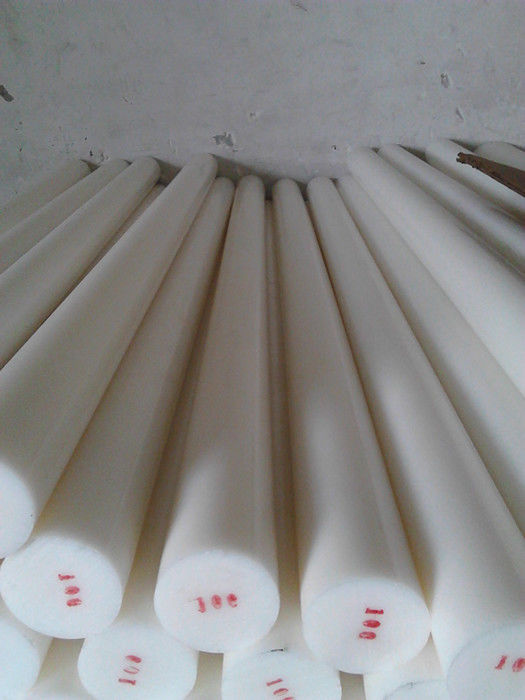

Description: the PTFE rod, PTFE rod are made by moulded or extruded with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. Ø4-9mm is made by paste extruded, Ø10-50mm is made by ram extruded, Ø50-300mm is made by moulded. It has the best electrical properties of all plastics. The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication material.


Specifications:
material: virgin PTFE
quality: premium grade
color: white, black, brown
surface: smooth
tensile strength: 20-30Mpa
hardness: 55+/-5shore D
elongation at break: 200%
density: 2.1-2.3g/cm3
break down voltage: 10KV/mm
temp resist: -180°C - +260°C
size: Ø6-400mm x 0.3-1m
standard size:
Ø6mm x 1m
Ø7mm x 1m
Ø8mm x 1m
Ø10mm x 1m
Ø12mm x 1m
Ø15mm x 1m
Ø16mm x 1m
Ø18mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø28mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø135mm x 1m
Ø140mm x 1m
Ø145mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø190mm x 1m
Ø195mm x 1m
Ø200mm x 1m
Ø210mm x 1m
Ø220mm x 1m
Ø230mm x 1m
Ø250mm x 1m
Ø260mm x 0.3m
Ø270mm x 0.3m
Ø280mm x 0.3m
Ø290mm x 0.3m
Ø300mm x 0.3m
Ø350mm x 0.3m
Ø400mm x 0.3m
black available to fill 3% graphite or 10% carbon
***when you enquiry, pls confirm the color, size and quantity***
