High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment

  • High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment
  • High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment
  • High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment
  • High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment
  • High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,T/T,Western Union,Paypal,D/P,MoneyGram
Supply Ability 100000kgs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Medical, Food And Beverage, Industrial Quality High Tear Resistant
Material Silicone Hardness 60-70shore A
Elongation 350% Density 1.25g/cm³
Working Temperature -60℃-+260℃（moment 300℃） Resistant 18-25KV/mm
Wall Thickness 0.5mm-5mm Color Transparent
Tear Strength 20-40 N/mm Certifications FDA, RoHS, REACH
Tensile Strength 7-12 MPa Inside Diameter 2-350mm
Abrasion Resistance Good Surface Smooth
Keyword Silicone Hose Lead Time 7-15 Days
Uv Resistance Excellent
Highlight

flexible silicone tubing

,

silicone rubber pipe
Leave a Message
Product Description
Silicone Tube Extrusion for Corona Applications
High-quality silicone tube extrusion designed for corona rollers and silicone rubber sleeving applications. Manufactured with premium silicone rubber material that provides excellent high voltage resistance and flame retardant properties specifically engineered for corona machinery.
These silicone tubes ensure uniform high voltage corona spark distribution, facilitating optimal color printing on plastic films through effective surface activation and millipore treatment after corona processing. Capable of resisting 25KV at 1mm wall thickness. Ideal for roller sleeves, high-voltage terminals, protective sleeves, and flexing tubing across various corona machine applications.
Product Specifications
Material 100% virgin silicone from Germany Silicone
Color Orange, dark red, black, etc.
Tensile Strength 8-12 Mpa
Hardness 60-70 shore A
Elongation 400%-720%
Density 1.25 g/cm³
Working Temperature -60°C to +250°C
Voltage Resistance 18-25 KV/mm
Wall Thickness 3.0 mm, 4.0 mm
Standard Sizes
Ø32mm x Ø38mm x 2m
Ø32mm x Ø40mm x 2m
Ø34mm x Ø42mm x 2m
Ø46mm x Ø54mm x 2m
Ø50mm x Ø58mm x 2m
Ø55mm x Ø62mm x 2m
Ø60mm x Ø66mm x 2m
Ø60mm x Ø68mm x 2m
Ø63mm x Ø71mm x 2m
Ø67mm x Ø75mm x 2m
Ø75mm x Ø83mm x 2m
Ø80mm x Ø88mm x 2m
Ø90mm x Ø98mm x 2m
Ø98mm x Ø102mm x 2m
Ø106mm x Ø114mm x 2m
Ø140mm x Ø150mm x 2m
Ø145mm x Ø153mm x 2m
Ø162mm x Ø172mm x 2m
Custom OEM sizes available upon agreement. When requesting a quote, please specify color, quality requirements, hardness specifications, dimensions, and quantity.

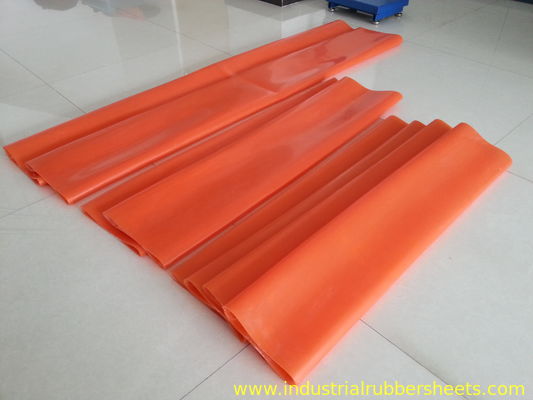

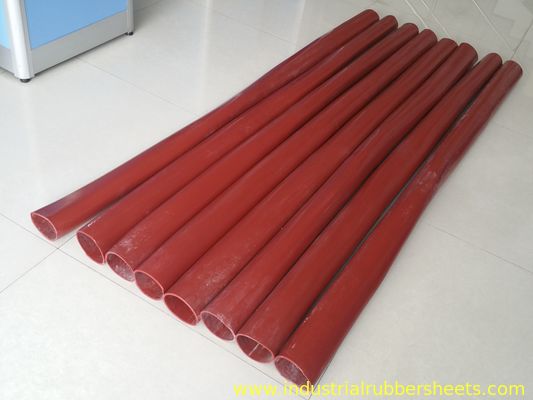

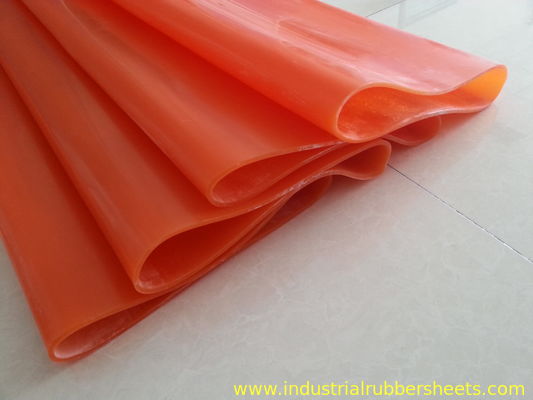

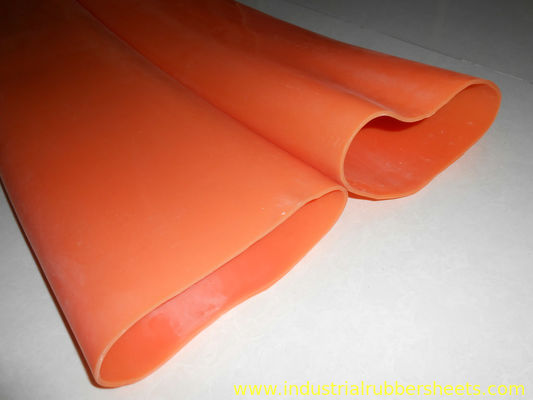

Product Gallery
High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment 0 High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment 1 High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment 2 High Voltage Resistant Silicone Tube Extrusion for Corona Sparkle Well-Proportioned Surface Activation with Millipore After Treatment 3
Tags:

flexible silicone tubing

silicone rubber pipe

high temperature silicone rubber tubing
