Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface

China Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface supplier
Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface supplier Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface supplier Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface supplier

Large Image :  Excellent FRHQ Shock Absorber Rubber Mounts Industrial Grade Smooth Surface

Product Details:

Place of Origin: China
Brand Name: 3Arubber
Certification: RoHS/FCC/SGS
Model Number: 3A4011

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Price: neogation
Packaging Details: packed in cartons
Delivery Time: 10 working days after recieved your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000000 pieces per month
Contact Now
Detailed Product Description
Material: Galvanized Metal + Rubber Rubber: NR,NBR(default NR)
Quality: Industrial Grade Color: Black
Top: Metal Cap With Screw Thread Middle: High Tensile Rubber
Bottom: Metal Seat With Grooves Surface: Smooth
Tensile Strength: 8-12Mpa Hardness: 40,60+/-5shore A
Elongation: 350% Density: 1.4g/cm³
Working Temperature: -40℃-+120℃ Working Frequency: 1500-3000HZ
Size: Standard Without Mould Cost



Excellent FRHQ Rubber Mounting ,Shock Absorber on Sale for Industrial Grade

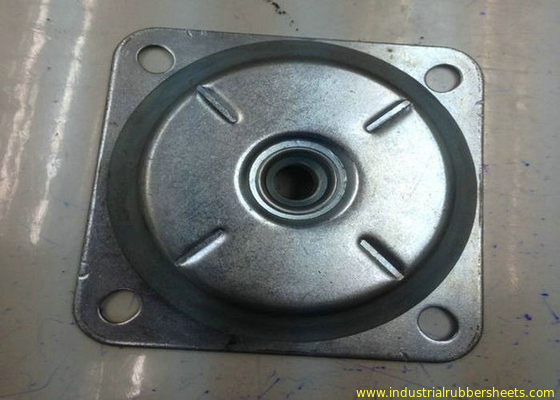

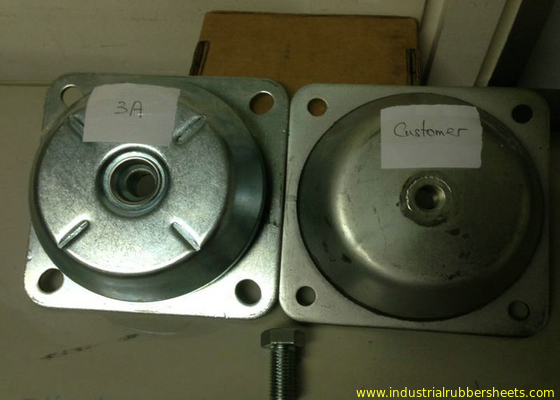

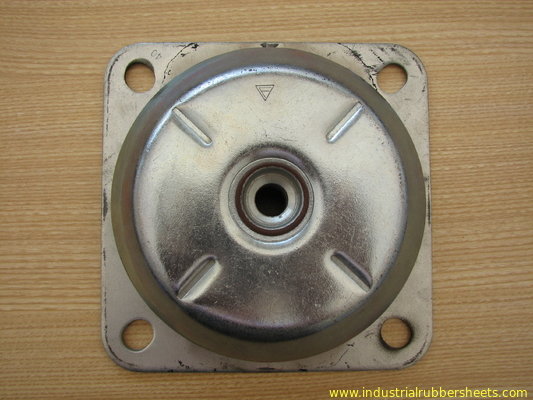

Description: the FRHQ rubber mounting is one of bell-type shock absorber screw with professional technology and inimitable formulation. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 4 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 1500-3500HZ, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.





Specifications:

material galvanized metal + rubber
rubber NR, NBR(default is NR)
quality industrial grade
color black
top metal cap with screw thread
middle high tensile rubber
bottom metal seat with grooves
surface smooth
tensile strength 8-12Mpa
hardness 40, 60+/-5shore A
elongation 350%
density 1.4g/cm3
working temperature -40°C - +120°C
working frequency 1500-3000HZ
size standard without mould cost
OEM agree to produce by the buyer's drawing


packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
