Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators

China Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators supplier
Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators supplier Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators supplier Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators supplier Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators supplier

Large Image :  Black Color Rubber Shock Mounts / Cylindrical Vibration Isolators

Product Details:

Place of Origin: China
Brand Name: 3Arubber
Certification: RoHS/FCC/SGS
Model Number: 3A4001

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Price: neogation
Packaging Details: packed in cartons
Delivery Time: 10 working days after recieved your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000000 pieces per month
Contact Now
Detailed Product Description
Material: Galvanized Mental+rubber Rubber: NR,NBR,SBR Etc(default Is NR)
Quality: Industrial Grade Color: Black
Top: Screw Bolt Bottom: Screw Bolt
Surface: Smooth Tensile Strength: 8Mpa
Hardness: 40,50,60+-5shore A Elongation: 350%
Density: 1.4g/cm³ Size: Standard Without Mould Cost
OEM: Agree To Produce By The Buyer's Drawing

Black Color A-MM Rubber Mounting,Shock Absorber for all Kinds of Machinery Anti-virbration and Shock Absorption







Description:

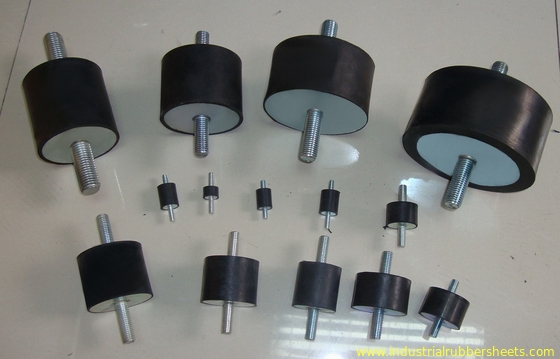

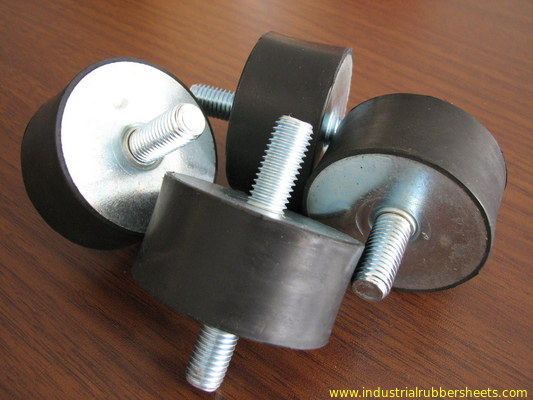

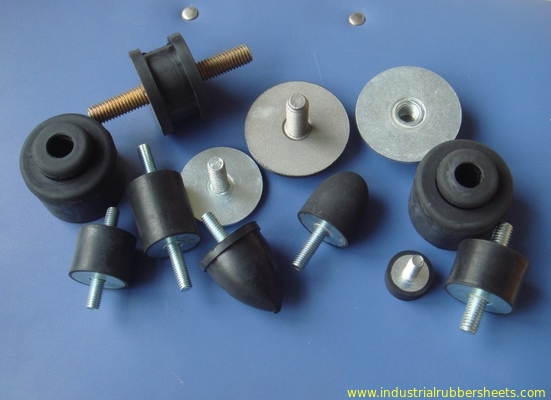

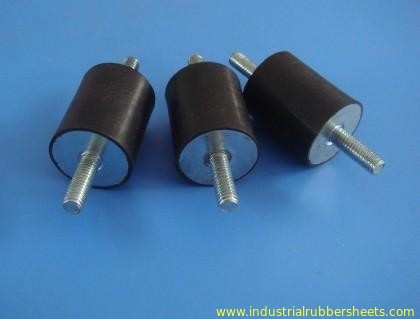

Cylindrical mounts are made with the finest quality rubber and metal to meet the most demanding requirements for effective vibration isolation and noise damping over a wide range of frequencies while managing motion. Cylindrical mounts, also called cylindrical bobbins or bobbin mounts are commonly used for both active and passive vibration suppression as well as shock and structure-borne noise control. Cylindrical vibration isolators can be installed in both compression and shear designs.

Each cylindrical mount is available with natural rubber as well as specialized compounds as seen below.

Additional compounds available: Chloroprene (Baypren, Neoprene), Ethylene Propylene Terpolymer, Ntrile Butadine (Perbunan), Styrene Butadiene, Butyl, Polyurethane, Silicone Rubber and Fluorocarbon (FKM). Stainless steel threads are available for substantial volume orders.



Specifications:

material galvanized metal + rubber
rubber NR, NBR, EPDM, SBR etc.(default is NR)
quality industrial grade
color black
top screw bolt
bottom screw bolt
surface smooth
tensile strength 8Mpa
hardness 40, 50, 60+/-5shore A
elongation 350%
density 1.4g/cm3
size standard without mould cost
OEM agree to produce by the buyer's drawing


packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***

Black Color Rubber Shock Mounts / Cylindrical Vibration IsolatorsBlack Color Rubber Shock Mounts / Cylindrical Vibration Isolators
