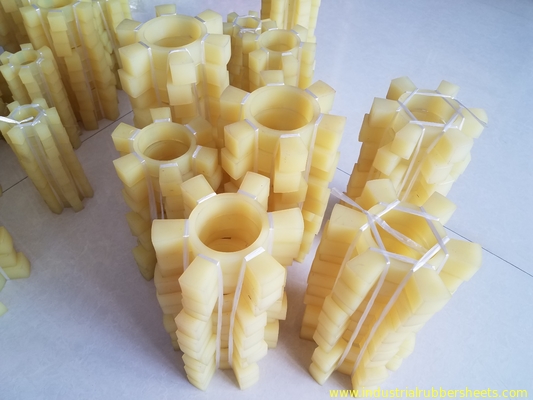

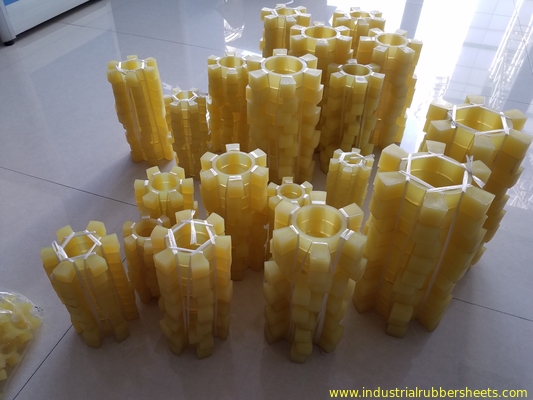

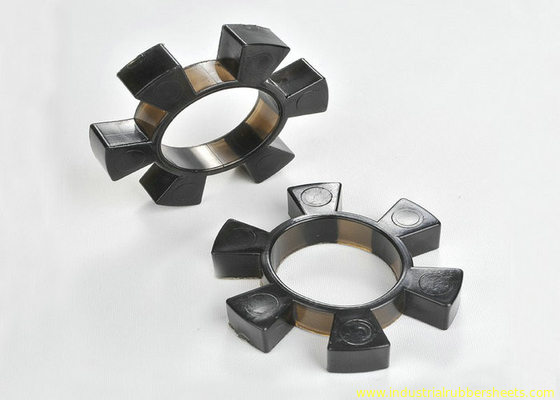

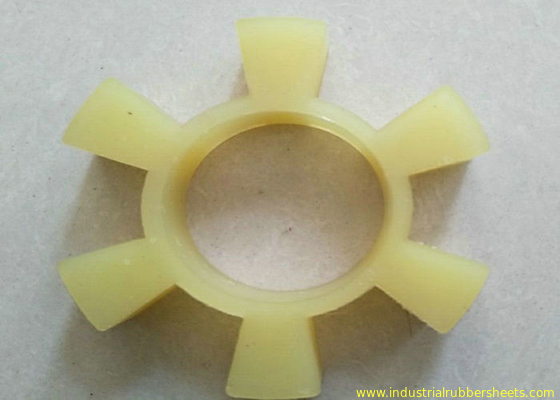

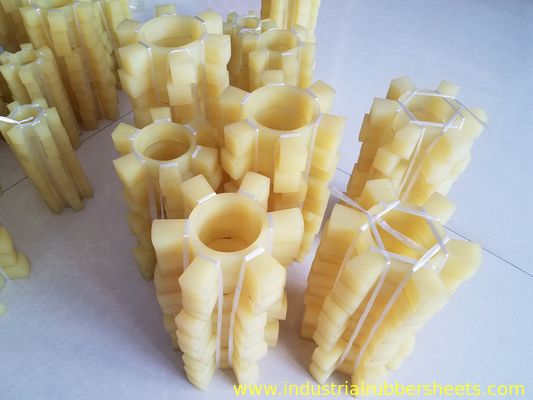

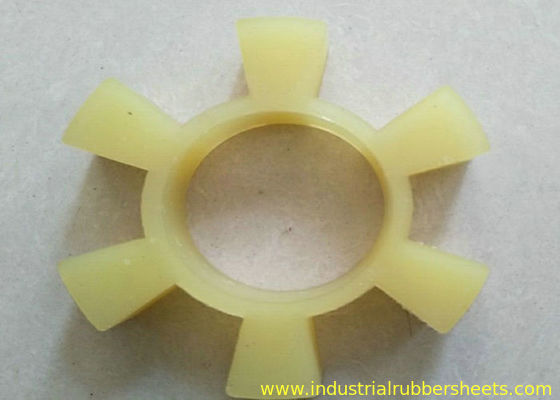

Standard Size T Type Polyurethane Coupling 12-50Mpa Tensile Strength

100pieces
MOQ
neogation
Price
Standard Size T Type Polyurethane Coupling 12-50Mpa Tensile Strength
Features Gallery Product Description Request A Quote
Features
Specifications
Type: T Type
Color: Yellow,red,purple,black
Surface: Smooth
Tensile Strength: 12-50Mpa
Hardness: 80-98shore A
Elongation: 650%
Density: 1.25g/cm³
Size: Standard Size
High Light:

pu coupling

,

rubber coupling

Basic Infomation
Place of Origin: China
Brand Name: 3Arubber
Certification: ROHS/FCC/SGS
Model Number: 3A2006
Payment & Shipping Terms
Packaging Details: Packed in cartons
Delivery Time: 10 working days after recieved your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10000kgs per month
Product Description

T Coupling, Sbt Coupling, PU Coupling, Rubber Coupling with T4-210





Others standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***




Material:
NBR, CSM/SBR Or TPU Color: Black, Yellow
Hardness: 80-90shore A Size: T40-210
Working Temperature: -20oC - +100oC




T type rubber coupling , T type polyurethane coupling , T type PU coupling
Specifications
1. Material: polyurethane, rubber
2. Good stability
3. Easy to maintain
4. ISO9001-2000 certificate

Coupling:
1. Jaw coupling/ SBT coupling
2. Flange cast iron, Insert Bubber
3. Taper bore universal series
4. Keyway dimensions conform to DIN6885,GB1095-1979 standards.

Item No. OD(mm) ID(mm) Thickness(mm) USD/piece for PU USD/piece for Rubber
T40       US$0.18
T45 45 20 10 US$0.18
T50 50     US$0.18
T55 55 26 10 US$0.18
T60 60 26 11 US$0.21
T65 65 30 15 US$0.21
T70 70 32 16 US$0.21
T75 75 36 17 US$0.28 US$0.14
T80 80 36 18 US$0.28 US$0.16
T85 85 41 18 US$0.30 US$0.18
T90 90 41 18 US$0.39 US$0.21
T95 95 45 18 US$0.39 US$0.23
T100 100 54 22 US$0.49 US$0.26
T105 105 54 22 US$0.53 US$0.28
T108 108 52 22 US$0.62 US$0.28
T110 110 55 22 US$0.71 US$0.30
T115 115 55 23 US$0.85 US$0.34
T120 120 55 24 US$0.88 US$0.35
T125 125 60 25 US$0.97 US$0.44
T130 130 60 25 US$1.04 US$0.49
T135 135 60 25 US$1.15 US$0.53
T140 140 70 26 US$1.18 US$0.62
T145 145 72 27 US$1.24 US$0.71
T150 150 76 27 US$1.34 US$1.06
T154 154 78 26 US$1.76 US$1.24
T170 170 80 28 US$5.29 US$1.59
T185 185 113 40 US$5.65
T190 190 0 0 US$6.18
T210 210 100 36 US$7.06 US$3.18



Standard Size T Type Polyurethane Coupling 12-50Mpa Tensile Strength 0Standard Size T Type Polyurethane Coupling 12-50Mpa Tensile Strength 1Standard Size T Type Polyurethane Coupling 12-50Mpa Tensile Strength 2
