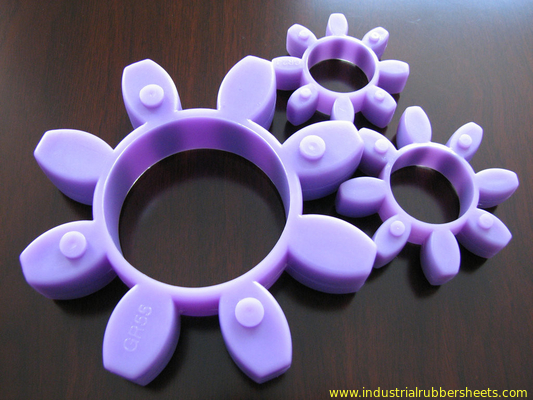

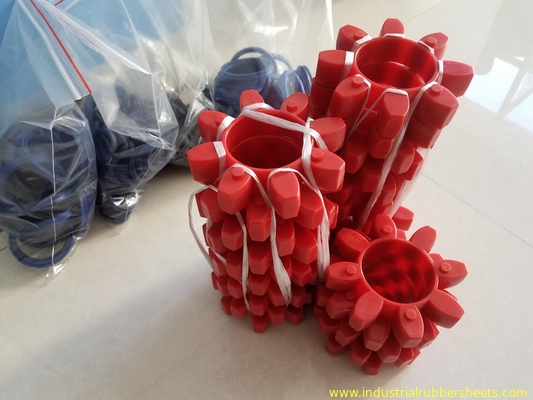

High Quality Gr Type Polyurethane Coupling With All Kinds Of Color
Advabtages:
1, Extremely resistant to wear, oil, ozone and ageing. Also resistant to hydrolysis (ideal for tropical climates)
2, Protect the drive against dynamic overload.
3, Good physical properties.
4, Easy installation .
5, OEM
Technical Data
Operating conditions
Temperature: -40~+100°C
Torque: 22.4-2500NM
Material
Material: TPU
Hardness: Yellow: 92 Shore A
Red: 98 Shore A
Green: 64 Shore D
Standard: KTR, Germany
Size |
Material | OD | ID | H | H1 | Lemella qty |
| GR14 | Polyurethane | 30 | 10.5 | 12 | 10 | 4 |
| GR19 | Polyurethane | 40 | 18 | 14.5 | 12 | 6 |
| GR24 | Polyurethane | 54 | 26 | 15.2 | 14 | 8 |
| GR28 | Polyurethane | 65 | 30 | 19 | 15 | 8 |
| GR38 | Polyurethane | 80 | 38 | 22 | 18 | 8 |
| GR42 | Polyurethane | 95 | 46 | 24 | 20 | 8 |
| GR48 | Polyurethane | 104 | 51 | 25.5 | 21 | 8 |
| GR55 | Polyurethane | 120 | 60 | 27 | 22 | 8 |
| GR65 | Polyurethane | 135 | 68 | 32 | 26 | 8 |
| GR75 | Polyurethane | 160 | 80 | 37 | 30 | 10 |
| GR90 | Polyurethane | 199 | 100 | 42 | 34 | 10 |
| GR100 | Polyurethane | 225 | 113 | 38 | 10 | |
| GR110 | Polyurethane | 255 | 127 | 42 | 10 | |
| GR125 | Polyurethane | 290 | 147 | 46 | 10 | |
| GR140 | Polyurethane | 320 | 165 | 50 | 10 | |
| GR160 | Polyurethane | 370 | 190 | 57 | 10 | |
| GR180 | Polyurethane | 420 | 220 | 64 | 12 |
Specifications:
| material | polyester, CSM/SBR |
| color | yellow, red, purple, green, black etc. |
| surface | smooth |
| tensile strength | 12-55Mpa |
| hardness | 80-98Shore A |
| elongation | 400%-650% |
| density | 1.25g/cm3 |
| elasticity impact | >25% |
| tear strength | 35-155KN/m |
| akron abrasion loss | <0.05cm3/1.61km |
| compression set (22h*70oC) | <10% |
| working temperature | 120℃ |
| size | build molding according to the buyer's drawings |
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
