High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet

China High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier
High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet supplier

Large Image :  High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A6013

Payment & Shipping Terms:

Minimum Order Quantity: 50kgs
Price: USD2.80/kg
Packaging Details: packing in crates
Delivery Time: 2-3weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000kgs/month
Contact Now
Detailed Product Description
Material: Phenolic+cotton Color: Brown, Orange, Black
Surface: Smooth Tensile Strength: 78Mpa
Compression Strength: 138Mpa Density: 1.25-1.40g/cm3
Rated Voltage: 10KV

Phenolic Sheet, Bakelite Sheet, Cotton Sheet, Insulation Sheet for High Voltage Application

Bakelite is called phenolic paper laminated sheet.  A hard, dense material made by applying heat and pressure to layers of paper or glass cloth impregnated with phenolic resin. These layers of laminations are usually of cellulose paper, cotton fabrics, synthetic yarn fabrics, glass fabrics or unwoven fabrics. When heat and pressure are applied to the layers, a chemical reaction (polymerization) transforms the layers into a high-pressure thermosetting industrial laminated plastic.

Color: orange red / Black

Good electrical properties
Good mechanical properties
No water absorption
High heat resistance
Good surface hardness
Abrasion resistance
Good insulation


 Application
PCB fixture, ICT fixture, pads of drilling machine
Gear, motor, generator, transformer, fixture inverter
Switch, electric insulation part
Generator, transformer, fixture, inverter, motor and electric insulation component.


Properties Grade

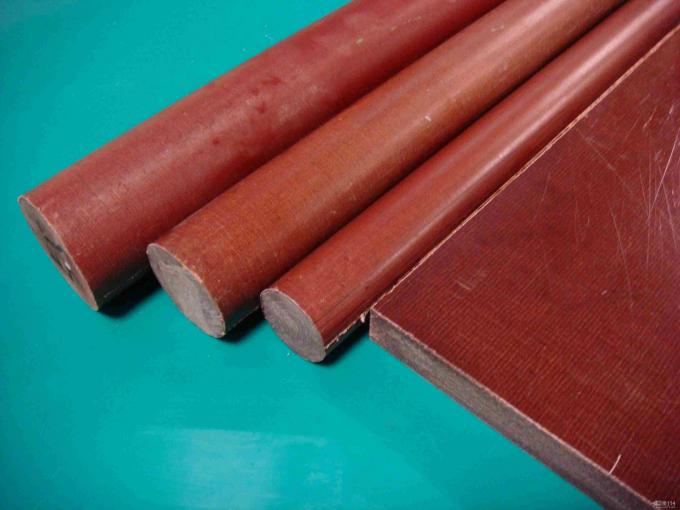

Phenolic Cotton Cloth laminated Rod
Properties Units 3723 3725 3726
Density   Dia(mm) g/cm3 1.25-1.40 1.25-1.40 1.25-1.40
Water absorption rate (D-24/23) 6 % 1.7 1.2 1
13 1.3 (Φ13mm) (Φ13mm)
25 1
25~51 1.2
Flexural strength   MPa 90 110 95
Tensile strengh   MPa 78
Compression strength (Axial)   MPa 138 138 138
Insulation resistance parallel to laminations
A: Under normal condition   W 1.0×108
D-24/23: Immersion in water   W
Breakdown voltage parallel to laminations (in transformer oil)   KV 10 10 10
  (20±5°C) (20±5°C) (20±5°C)
Flammability     - - - -
Color     - Natural Natural Natural
Reference standard     - Enterprise Standard




High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet

High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet
