Premium Grade PTFE Rod with Hardness 55+/-5 Shore D, Temperature Resistant -180°C to +260°C and Tensile Strength 20-30Mpa
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3002 |
| Minimum Order Quantity | 100kgs |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 1000000pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 100% Virgin PTFE Material | Color | White, Black |
|---|---|---|---|
| Tensile Strength | 20-30Mpa | Hardness | 50-60shore D |
| Elongation | 200-300% | Density | 2.1-2.3g/cm3 |
| Temperature Resist | -180°C - +260°C | Size | Od6-400mm X 300-1000mm |
| Highlight | nylon round bar,solid plastic rods |
||
Product Description
Premium Grade Smooth Surface Nylon Plastic Rod, Hardness 55+ / -5 Shore D

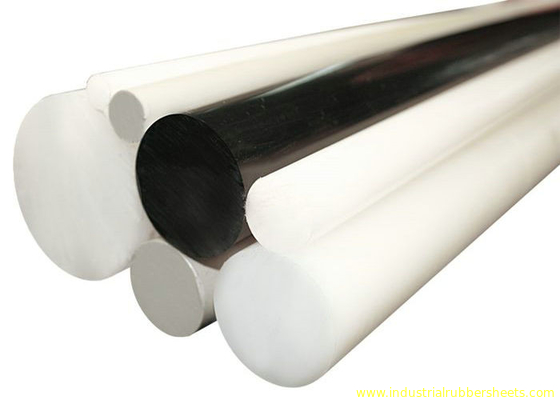

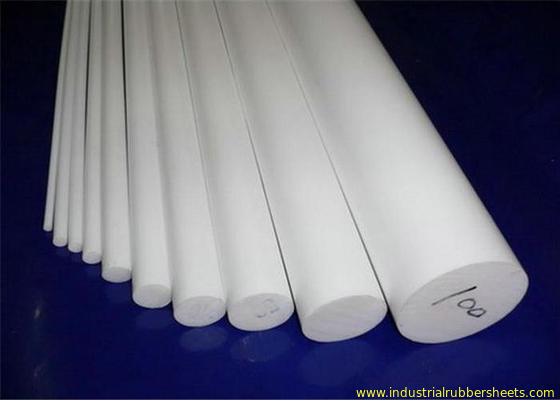

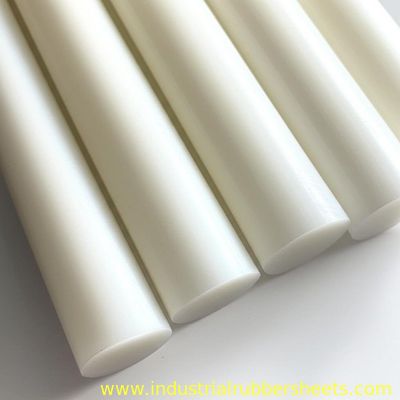

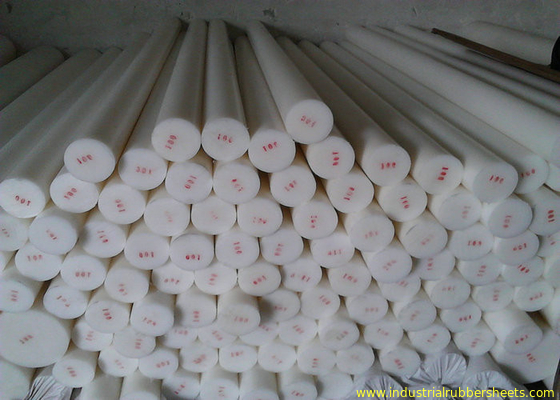

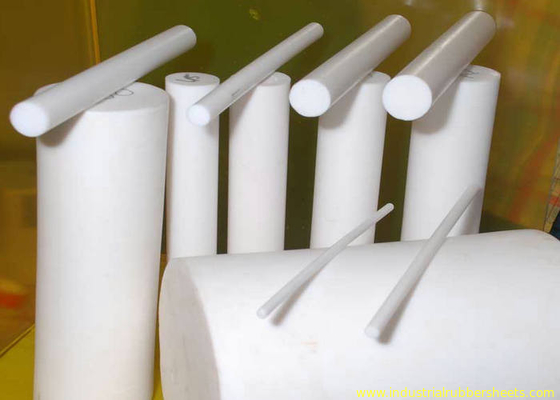

Premium Grade PTFE Rod
Our PTFE rods are manufactured using high-quality polytetrafluoroethylene (PTFE) material through moulded or extruded processes. Available in white or black colors, these rods represent the best polymer material for chemical resistance among all known plastics.
Key Characteristics
- Excellent corrosion and weathering resistance
- Superior dielectric properties
- Lowest coefficient of friction among all known solid materials
- Wax-like non-stick surface
- Wide operating temperature range: -180°C to +260°C
- Best electrical properties of all plastics
Manufacturing Methods
- Ø4-9mm: Paste extruded
- Ø10-50mm: Ram extruded
- Ø50-300mm: Moulded
Technical Specifications
| Material | 100% virgin PTFE |
|---|---|
| Quality | Premium grade |
| Color | White, Black |
| Surface | Smooth |
| Tensile Strength | 20Mpa |
| Hardness | 55+/-5 Shore D |
| Elongation at Break | 200% |
| Density | 2.1-2.3g/cm³ |
| Breakdown Voltage | 10KV/mm |
| Temperature Resistance | -180°C to +260°C |
Available Sizes
Standard diameter range: Ø6-400mm
Standard length: 1m (for diameters up to 250mm), 0.3m (for diameters 260-400mm)
Standard length: 1m (for diameters up to 250mm), 0.3m (for diameters 260-400mm)
Black Variant Options
Black rods available with 3% graphite or 10% carbon filler
When making an inquiry, please confirm the color, size, and quantity required.
