Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance

  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
  • Polyurethane Spider Coupling with 92-98 Shore A Hardness High Tensile Strength and Good Machining Performance
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number GR, GS
Minimum Order Quantity 10pieces
Packaging Details packing in cratons
Delivery Time 7-15days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000000pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red, Yellow, Green Material TPU
Hardness 92, 95, 98shore A Type GR, GS
Structure Jaw / Spider Flexible Or Rigid Flexible
Standard Or Nonstandard Standard Product Name GR90 Spider For TS-B Rotex Jaw Coupling
Size Standard Sizes Service OEM Or ODM
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description

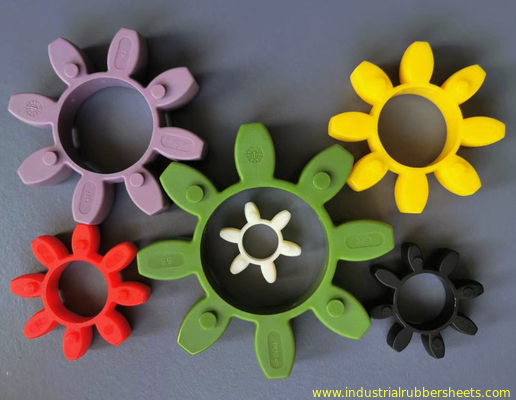

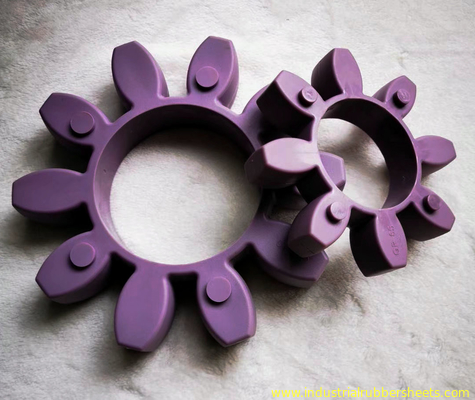

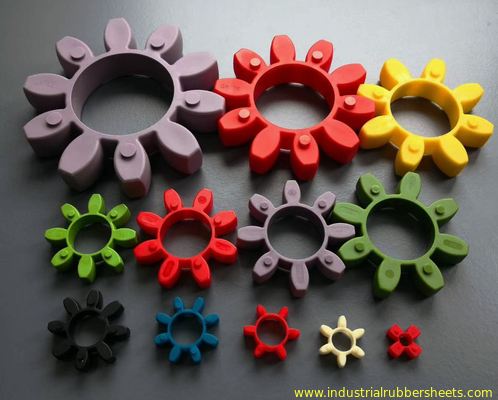

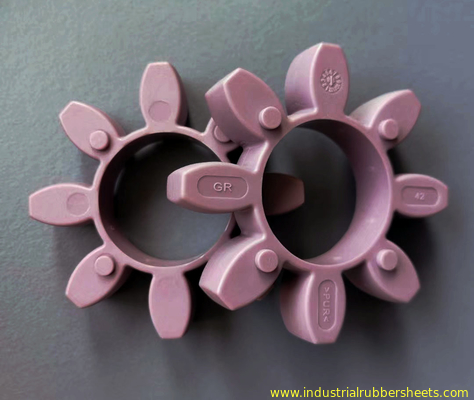

Polyurethane Spider Coupling
High Tensile Strength with Excellent Machining Performance
Available Types: Polyurethane Element Spider, PU Element Spider, GR Element Spider, GS Element Spider
Product Description
Polyurethane elastomer is a synthetic polymer material combining properties of rubber and plastic, offering exceptional performance characteristics:
  • Wide hardness range (Shore A10-D80) with excellent elasticity even at high hardness
  • Superior tensile strength, tear resistance, and load capacity compared to standard rubber
  • Outstanding wear resistance (3-5 times better than conventional rubber)
  • Excellent oil resistance with low affinity for non-polar mineral oils
  • Superior resistance to oxygen, ozone, and radiation
  • Exceptional vibration absorption and damping properties
  • Good low temperature performance and machining characteristics
Our couplings are precision-injected using high-quality TPU material or molded CSM/SBR, designed for various metal shaft coupling applications with superior performance in:
Property Specification
Material TPU, CSM/SBR, NBR, nylon
Color Options Yellow, red, purple, green, black, beige
Tensile Strength 8-55Mpa
Hardness 70-98Shore A
Elongation 400%-650%
Density 1.25g/cm³
Working Temperature Up to 120°C
Standard Sizes
Polyurethane Couplings
  • GR14, GR19, GR24, GR28, GR38
  • GR42, GR48, GR55, GR65, GR75
  • GR90, GR100, GR110, GR125
  • GR140, GR160, GR180
  • GS5, GS7, GS9, GS12, GS14
  • GS19, GS24, GS28, GS38, GS42
  • GS48, GS550, GS65, GS75
  • MT1-MT13 series
  • ML1-ML13 series
  • MH45-MH200 series
  • HRC70-HRC280 series
  • L35-L276 series
  • FALK-R 10R-80R
  • SBT T40-T150 series
  • Joong Ang CR series
  • MS0511-MS6510 series
  • D14-D65 series
  • 5H-11H series
Rubber Couplings
  • Hb80-Hb315 series
  • HRC70-HRC280 series
  • L35-L225 series
  • NM50-NM265 series
  • NOR-MEX series
  • FCL1#-FCL8# series
  • FCL90-FCL630 series
  • Gear 3J-14J series
  • Hytre 4H-11H series
  • Tyre F40-F160 series
  • SBT T75-T210 series
  • FCLpin #1-#8 series
  • GR42-GR75 series
  • DL1-DL11 series
Nylon Couplings
  • NL1-NL10 series
  • M28-M65 series
Packaging Options: Bags, cartons, pallets, or crates. Custom sizes available upon request.
We also supply various steel couplings for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, and Tyre applications.
Note: When inquiring, please specify type, size number, and quantity for accurate quotation.
