HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant

HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant
HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant

Large Image :  HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant

Product Details:
Place of Origin: China
Brand Name: 3ARUBBER
Payment & Shipping Terms:
Minimum Order Quantity: 10sets
Price: negotation
Packaging Details: packing in carton
Delivery Time: 7-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000stes per month
Detailed Product Description
Materual: Rubber + Irong Color: Red+black
Name: Polyurethane Coupling Type: Jaw Spider Coupling
Brand: 3ARUBBER Tensile Strength: 12-55Mpa
High Light:

pu coupling

,

rubber coupling

HTLA Flexible Jaw Spider Coupling, Rubber Coupling Elements of Hb with High Quality,Rubber Element + Iron



Physical character: made by injection with high quality polyester or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of GR, GS, MT, Hb, HRC, L, NM and Gear J series couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.

Specifications:
material: polyester, CSM/SBR
color: yellow, red, purple, green, black etc.
surface: smooth
tensile strength: 12-55Mpa
hardness: 80-98Shore A
elongation: 400%-650%
density: 1.25g/cm3
elasticity impact: >25%
tear strength: 35-155KN/m
akron abrasion loss: <0.05cm3/1.61km
compression set (22h*70oC): <10%
working temperature: 120oC
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***

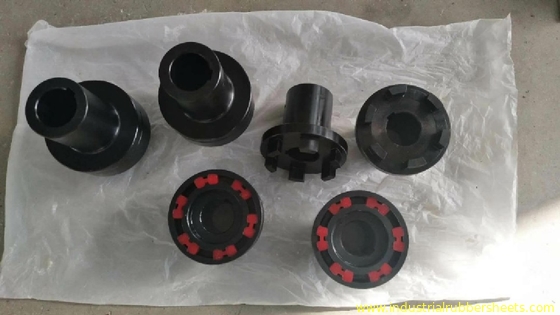

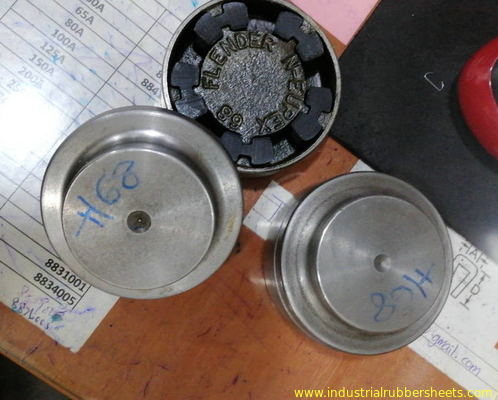

A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.

The elastomer of the spider can be made in different materials and hardness, which allows the user to customize the coupling to best serve their application. Considerations for elastomer selection include ability to dampen vibration, ability to handle misalignment, operational temperature range, speed of equipment, and chemical conditions.

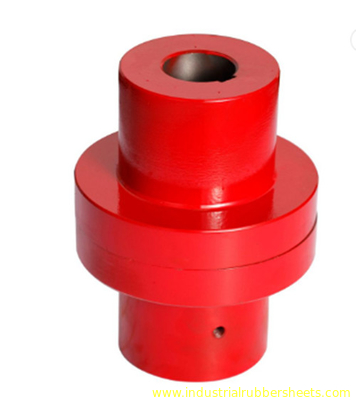

Features of H type jaw coupling:

1. Made of C45 Steel

2. Rubber elastomer,high stability

3. No wear even if working with parallel misalignment

HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant 0HTLA Flexible Polyurethane Coupling Jaw Spider Coupling High Wear Resistant 1
