100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications

  • 100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications
  • 100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications
  • 100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications
  • 100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications
  • 100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3006
Minimum Order Quantity 1000rolls
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PTFE Expand Color White, Yellow, Red
Quality FDA Grade Density 0.20-1.60g/cm3
Working Temperature -150°C ~ +250°C Thickness 0.075-0.25mm
Width 10-100mm Length 6-50m
Highlight

ptfe thread sealant

,

ptfe thread seal tape
Leave a Message
Product Description

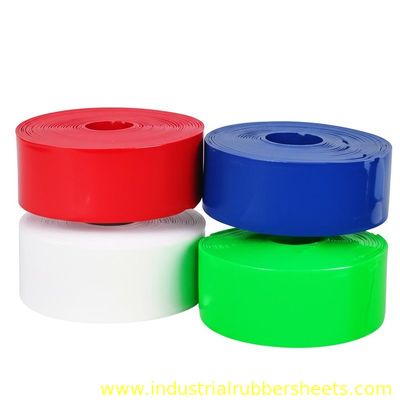

High Temperature 100% Virgin PTFE Gasket Tape In White, Red, Green, Blue
Product Description

100% virgin PTFE unsintered tape, PTFE high temperature thread tape

PTFE resin is first molded into work-blank and then skived. The PTFE resin skived sheet tape are highly dielectric, chemical resistant and not aging. They have a wide range of operation temperature.

Applications
  • Lining, sealing and oilless lubricating material and dielectric at any frequencies
  • Capacitor dielectric
  • Wire isolation
  • Electrical instrument isolation
Specifications
Item Thickness (mm) Thickness Allowance Width (mm) Width Allowance Length (m)
High-density 0.030~0.100 ±10% 30~90 ±0.3 ≥10
Semi-density 0.050~0.100 ±10% 60~90 ±0.3 ≥5
Common 0.050~0.500 ±10% 60~90 ±0.3 ≥5
Technical Data
Technical data Unit High-density Semi-density Common
Tensile strength≥0.01 Mpa ≥30 ≥20 ≥10
Elongation at rupture % ≥30 ≥60 ≥100
1MHZ dielectric loss Tangent≥0.01 2.5x104 - -
1MHZ dielectric constant 1.8~2.2 - -
Dc breakdown voltage (normal temperature) Kv/mm 200 60 30
100% Virgin PTFE Gasket Tape with FDA Grade and Chemical Resistant Properties for High Temperature Applications 0
