High Heat Silicone Sponge Sheet 1-50mm Thick with 3M Adhesive
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1002 |
| Minimum Order Quantity | 200kgs |
| Price | USD3.00-15.00 per kg |
| Packaging Details | packed in rolls and pallets |
| Delivery Time | 10-20 working day after recieveed your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,MoneyGram,Alipay,Wechat |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Special For Ironing Table | Surface | Double Impression Fabric |
|---|---|---|---|
| Tensible Strength | 200psi | Hardness | 10-30shore A |
| Elongation | 100% | Density | 0.8g/cm³ |
| Thickness | 1-50mm | Size | 1-1.5m X 1-10m |
| Bottom | Adhesive 3M Glue | Electric Thermostat | Custom |
| Cell | Close Cell And Open Cell | Gasket | As Per The Buyer's Drawing |
| Weather Resistance | Excellent | Ozone Resistance | Excellent |
| Heat Resistant | 180℃ | Backing | Adhesive Tape |
| Packing | In Carton | Production | Mold Compression |
| Shape | Rectangle | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description

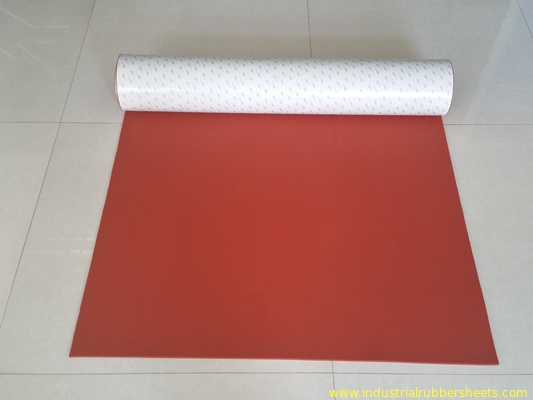

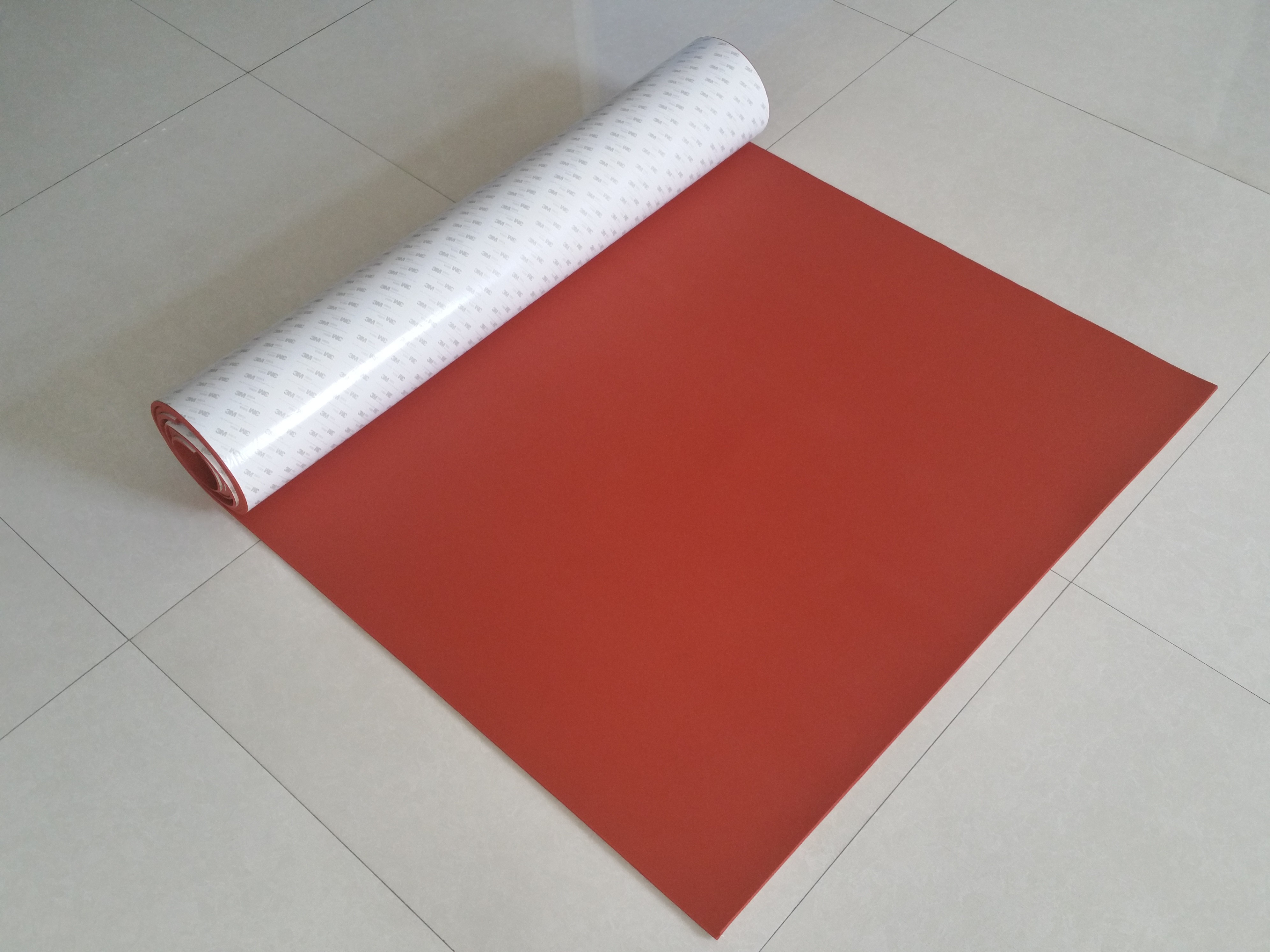

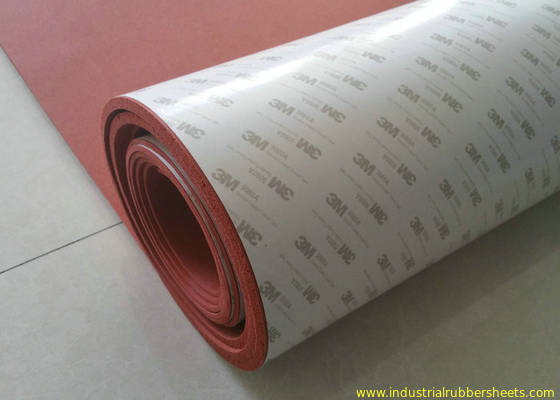

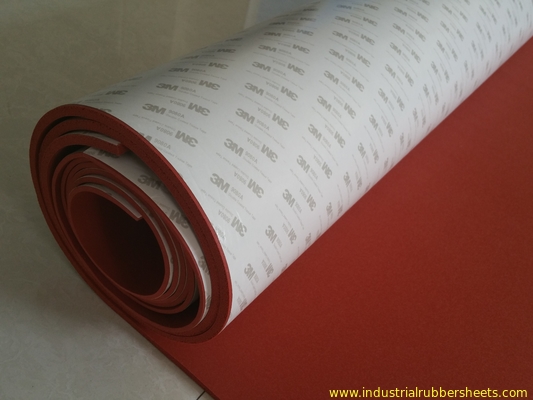

High Heat Silicone Sponge Sheet with 3M Adhesive Backing
Premium closed-cell silicone foam sheets with optional 3M adhesive backing, designed for high-temperature applications with excellent thermal and acoustic insulation properties.
Key Specifications
| Material | 100% virgin silicone rubber |
|---|---|
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue |
| Surface Finish | Double impression fabric or double smooth |
| Tensile Strength | 100-200PSI |
| Hardness (Shore A) | 10-40±5 (Standard 20-25) |
| Elongation | 100% |
| Density | 0.5-1.1g/cm³ |
| Temperature Range | -60°C to +220°C (momentary 260°C) |
Standard Dimensions
- Thickness: 1.5-50mm
- Width: 0.1-1.5m (max 1.5m for >5mm thickness)
- Length: 0.1-10m
Common Stock Sizes
- 1.5-50mm × 1.0m × 10m
- 1.5-50mm × 1.2m × 10m
- 5.0-50mm × 1.5m × 10m
Product Features
- Excellent high temperature resistance and thermal insulation
- Superior aging, ozone, and chemical resistance
- Fuel oil and lubricant resistant
- Odorless with high compressibility
- Low compression set across wide temperature range
- Effective acoustic insulation properties
Customization Options
- Perforated sheets available in 6, 8, 10mm thickness
- Custom adhesive backing options (Chinese general glue or USA 3M glue)
- Extrusions, profiles, and stripes available
- Custom packaging (cartons, rolls, pallets, crates)
Note: When requesting a quote, please specify desired color, hardness, surface finish, dimensions, and quantity.
