FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C

  • FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C
  • FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C
  • FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C
  • FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C
  • FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A5007
Minimum Order Quantity 200kgs
Price negotiation
Packaging Details Packed in rolls and pallets
Delivery Time 10-20 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 100000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tensile Strength 6-12Mpa Hardness 60, 70, 80+/-5shore A
Elongation 200% Density 1.9-2.1g/cm3
Working Temperature -40°C - +320°C Size 0.5-20mm X 1-3.6m X 1-20m
Highlight

rubber sheet rolls

,

waterproof rubber sheet
Leave a Message
Product Description

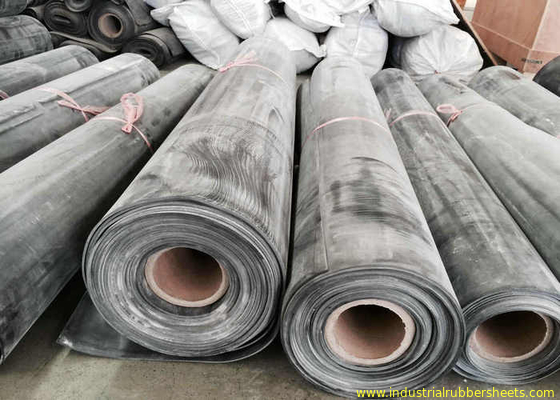

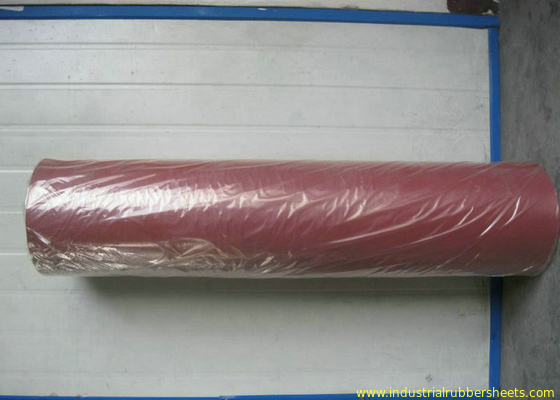

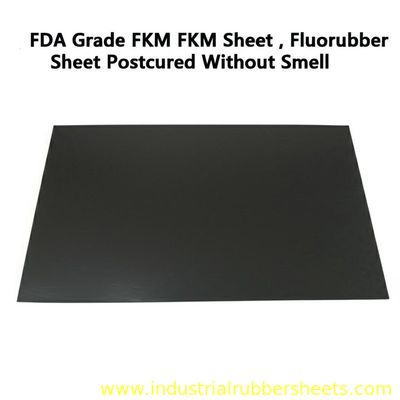

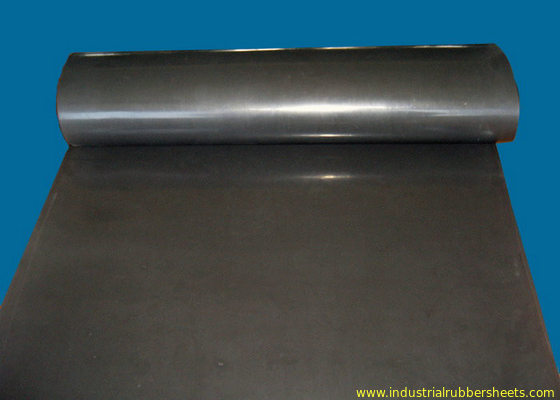

FDA Grade FKM Fluorubber Sheet - Postcured Without Smell

High-performance fluorubber rubber sheets, rolls, and industrial rubber sheets with tensile strength of 6-12Mpa. Ideal for industrial sealing applications requiring exceptional durability and chemical resistance.

Product Features
  • Manufactured using drum-type vulcanizing press (ROTOCURE) or vulcanizing press with premium fluorubber
  • Available in thicknesses from 0.5mm to 20mm with smooth, gleaming surfaces
  • Exceptional resistance to heat aging, high temperatures, ozone, oils, vacuum, acids, and alkalis
  • Operates effectively in temperatures ranging from -40°C to +320°C
  • Precision thickness variation control with excellent physical properties
  • Customizable with special requirements like insulation, textile insertion, or metal mesh insertion
Technical Specifications
Material Virgin fluorubber
Quality Industrial grade, FDA grade (postcure)
Available Colors Black, grey, brown, red, green, and others
Surface Options Smooth/smooth, smooth/impression fabric, double impression fabric
Tensile Strength 7-12Mpa
Hardness 60, 70±5 Shore A
Elongation 200%
Density 1.9-2.1g/cm³
Working Temperature -40°C to +320°C
Thickness Range 0.5-20.0mm
Width Range 0.1-2.0m
Length Range 0.1-20m
Insertion Options Reinforced with 1PLY fabric available
FDA Grade FKM Sheet with Tensile Strength 6-12Mpa Hardness 60-80 Shore A and Working Temperature -40°C to +320°C 0
Applications

Ideal for manufacturing seals and gaskets in demanding industries including military, aerospace, chemical processing, and other high-tech applications requiring superior material performance.

Related Products

We also supply FKM cord, FKM hose, FKM gasket, FKM ring, and other fluorubber components.

Please specify your required dimensions and quantity when inquiring about this product.
